Description
PRO NMEA 0183 Multiplexer
Eight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.

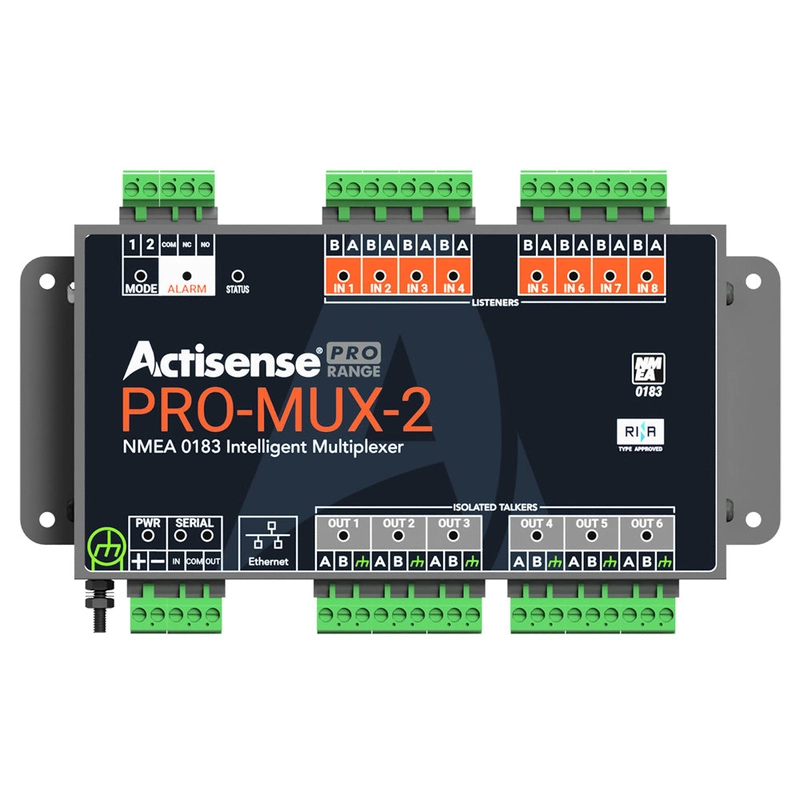

Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.
The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.
The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.
Features:
- 8 OPTO-isolated NMEA 0183 inputs
- 6 ISO-Drive NMEA 0183 outputs
- Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output)
- 0183 streaming via Ethernet
- Alarm output (N/O and N/C contacts)
- Designed for 12- and 24-Volt supply
- Isolation to battery supply
- Configurable input and output baud rates for rate conversion
- Data combining from any input to any output
- 2 independent Autoswitch virtual inputs with priority
- Advanced sentence-based filtering / routing
- Diagnostic LEDs on all inputs and outputs
- Alarm, mode and Bi-colour Status LED’s
- 2-part pluggable connector system supports both screw and screwless terminals
- DIN rail or Panel mountable
- Advanced statistics are available via a Web Browser
- Quick and easy to install
- Configuration using standard web browser, no PC operating system compatibility issues
- Advanced features solve NMEA 0183 data routing problems
- Fully isolated with ISO-Drive technology for peace of mind
- Easy firmware updates makes the device future-proof
Technical Specifications:
Power Supply
- Input Supply Voltage – 9 to 35 V DC
- Input Supply Current – 220mA max /embed/suun4Mrtusc” frameborder=”0″ allowfullscreen>
