Description
Auto Marine thin wall electrical cable, with 4.5mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand single core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade grey PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.

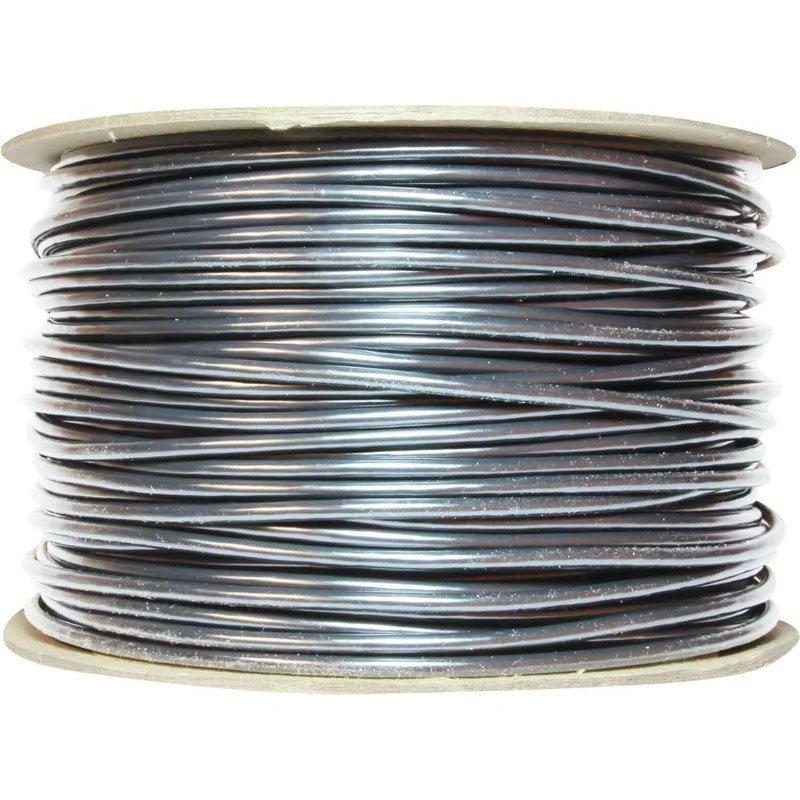

This is a 100 metre cable reel with grey PVC wall, other wall colours are also available.
| Maximum Load | 12V = 504 Watts, 24V = 1008 Watts |
| Style | Thin Wall Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 1 Core |
| Unit of Sale | 100 Metres |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 65/0.30 mm |
| Cable Conductor Cross Section | 4.5mm² |
| Resistance Per Metre at 20degC | 0.00406 ohms |
| Shape | Round |
| Brand | AMC |
| Colour | Grey |
| Voltage | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Amps | Nominal Current Rating: 42A |
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Diameter | Max Outside Diameter: 3.9mm |
| Country of Origin | United Kingdom |
Technical Article – Choosing the Correct Electrical Cable
Manufacturer Part Number: TW4.5-100M GREY
