Description
Auto Marine thin wall electrical cable, with 6mm² cross section in accordance with ISO 6722-1:2011 (Class B). This cable features a multi-strand single core copper conductor manufactured to BS EN 60228:2005 which is then insulated in a hard grade brown PVC insulation. This PVC sheath offers good protection against abrasion and cuts, as well as resistance to petrol, diesel, lubricating oils and diluted acids. As the insulation is reduced compared to traditional ways of cable manufacturing, this offers considerable weight saving benefits which is particularly useful in big wiring harnesses.

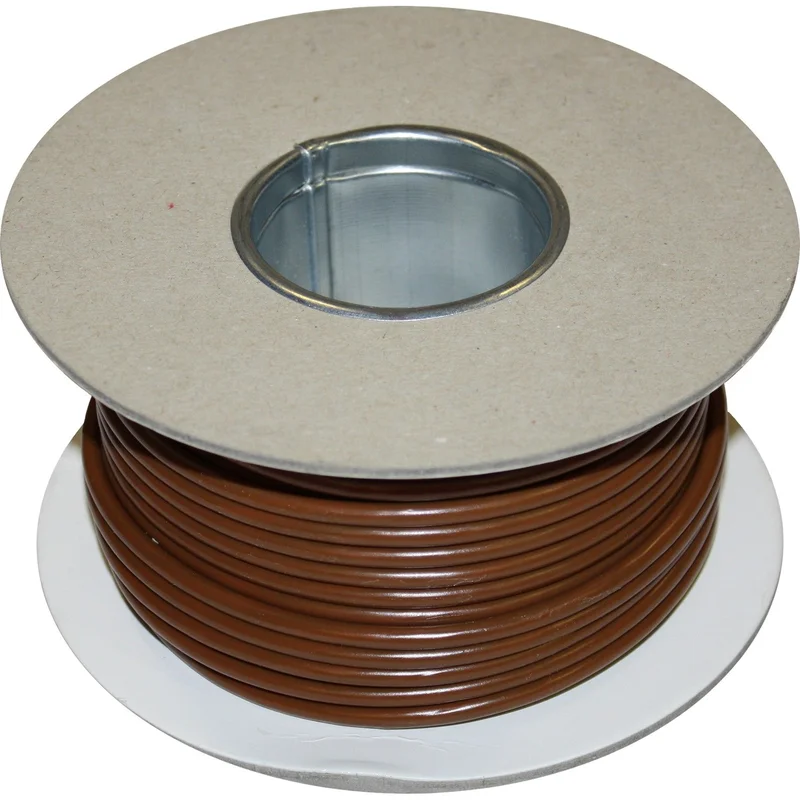

This is a 30 metre cable reel with brown PVC wall, other wall colours are also available.
| Maximum Load | 12V = 600 Watts, 24V = 1200 Watts |
| Style | Thin Wall Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 1 Core |
| Unit of Sale | 30 Metres |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 84/0.30 mm |
| Cable Conductor Cross Section | 6.0mm² |
| Resistance Per Metre at 20degC | 0.00314 ohms |
| Shape | Round |
| Brand | AMC |
| Colour | Brown |
| Voltage | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Amps | Nominal Current Rating: 50A |
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Diameter | Max Outside Diameter: 4.1mm |
| Country of Origin | United Kingdom |
Technical Article – Choosing the Correct Electrical Cable
Manufacturer Part Number: TW6N.30
