Description

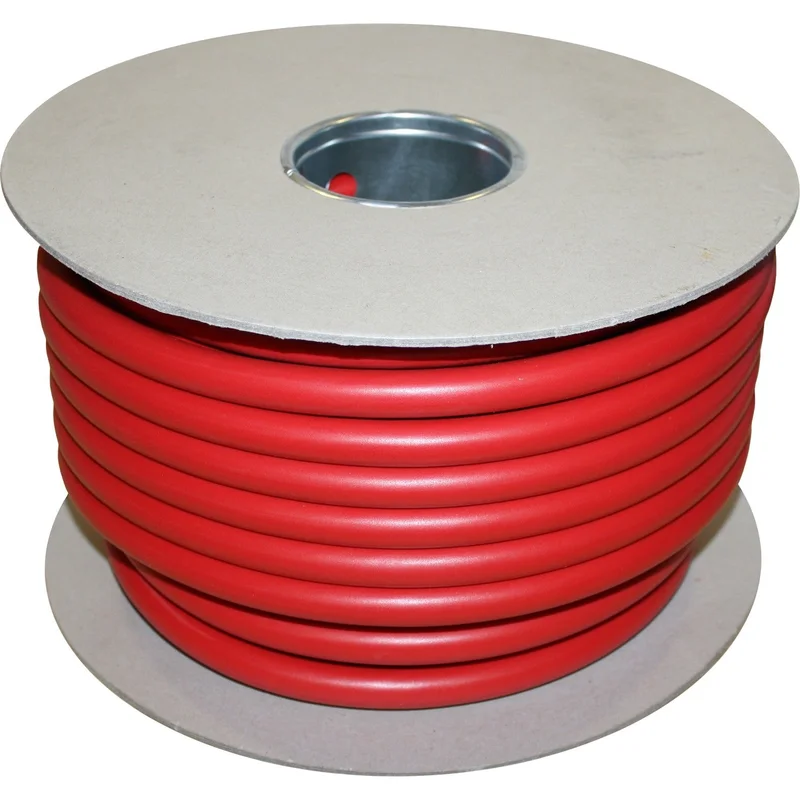

Auto Marine flexible PVC electrical cable, suitable for use as battery cable or starter cable in marine and automotive applications. The cable features a multi strand copper conductor with a red PVC insulation to represent a positive electrical connection. This outer sheath gives the cable resistance to petrol, lubricating oils and diluted acids.
This 60mm² battery cable can also be used to operate bow thrusters as well as winches and windlasses.
| Style | Battery Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 1 Core |
| Unit of Sale | 30 Metres |
| Cable Insulation | PVC |
| Conductor Specifications | 475/0.40 mm |
| Cable Conductor Cross Section | 60mm² |
| Resistance Per Metre at 20degC | 0.0003 Ohms |
| Shape | Round |
| Brand | AMC |
| Colour | Red |
| Voltage | Max. 60V (suitable for 12V DC & 24V DC systems) |
| Amps | Nominal Current Rating: 415A |
| Temperature Range | -15°C to +70°C |
| Diameter | OD: 14.6mm |
| Country of Origin | United Kingdom |
Technical Article – Choosing the Correct Electrical Cable
Manufacturer Part Number: 937R.30
