Description
ARCO Zeus Bluetooth Alternator Regulator – Extended Package (Includes 2x 15ft thermistors, 1x 30ft battery harness, 1x 15ft alternator harness) For Externally Regulated Alternators
Product Information

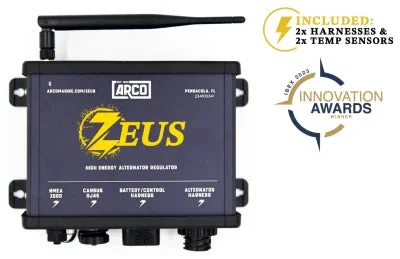

ARCO Zeus Bluetooth Alternator Regulator – Extended Harness
High-Energy External Bluetooth Alternator Regulator with Native App
Key Features
- Secure Bluetooth connection for installation, configuration, and firmware updates
- Includes battery & alternator harnesses plus two temperature sensors
- Extended harness lengths for flexible installation
- Native ARCO Zeus app on iOS & Android with intuitive dashboard and pre-set/customizable regulator settings
- Built-in State of Charge monitor—no separate SOC device required
- Generator Mode™ to maximize alternator output and recharge batteries quickly with minimal fuel
- Pre-set battery libraries for LiFePO₄ and lead-acid deep-cycle chemistries
- Data logging & wireless sharing—send configuration files and performance logs to support with one tap
- CANbus & NMEA 2000 integration for RV and marine networks
- Compatible with 12–48 V systems
- IP66/67 waterproof enclosure
Technical Specifications
| Bluetooth | Yes (Password Protected) |
|---|---|
| Feature-In Ports | 2 |
| Feature-Out Ports | 1 |
| RJ45 Port | Yes |
| NMEA 2000 | Yes |
| CAN Connections | 2 |
| Dedicated Signal Wire | Yes (disable external charging source) |
| System Voltage | 12 V / 24 V / 36 V / 48 V |
| State of Charge | Yes (SOC) |
| CE Mark | Yes |
| Generator Mode™ | Maximize engine power to field for full battery recharge |
| Circuit Compatibility | P-Type (B-Circuit) & N-Type (A-Circuit) |
| Waterproof Rating | IP66/67 |
| Regulator Optimization | Reacts to alternator & battery current/temperature inputs |
| Consistent Performance | Maintains max output within user-set safety limits |
| Included | Regulator, extended battery harness, extended alternator harness, 2 thermistors |
| Dimensions (no antenna) | 8.2″ × 5.9″ × 2.4″ |
| Dimensions (with antenna) | 8.2″ × 7.5″ × 2.4″ |
| Weight | 1.7 lb |
| Max Operating Temp | 80 °C (176 °F) |
| Warranty | 2 Years |
The_ARCO_Zeus_Collection_Brochure
ARCO_Zeus_Alternator_Wiring_Guide_2025
Zeus_4Pager_R7_1_datasheet_2025
ARCO_Zeus_Installation_Guide_2025
ARCO Zeus Victron Integration Guide v2.0
Manufacturer Part Number: AZ1000X
