Description
- Horizontal windlasses
- Maximum flexibility of installation
- AISI 316 Stainless steel and chromed bronze
- Integrated sensor and magnet for chain counter
- Rope and chain on a single gypsy
- Automatic system of anchor-rode free-fall
- Supplied with chain guide device
- Supplied with pressure lever
- Technopolymer gearbox

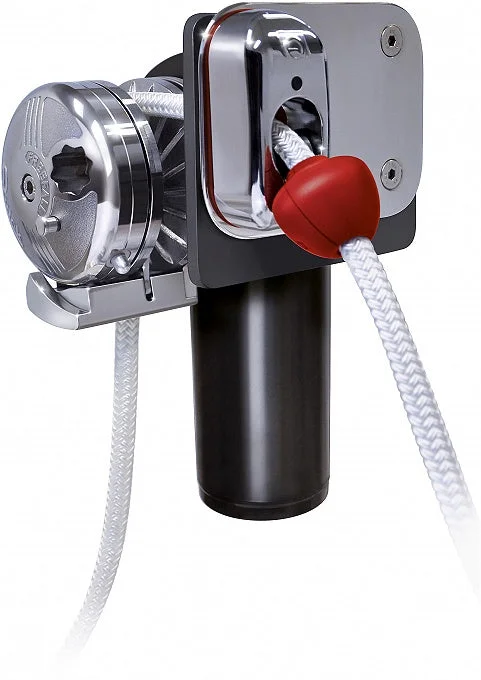

Balder BL2 is a horizontal windlass that adapts easily to every need allowing various combinations.
| BARBOTIN | 6 mm | 7 mm – 1/4″ | 8 mm | 5/16″ | |||||
| CHAIN SIZE | 6 mm | 6 mm | 7 mm | 7 mm | 1/4″ | 1/4″ | 8 mm | 8 mm | 5/16″ |
| ISO | DIN 766 | DIN 766 | ISO (**) | G4 | BBB | DIN 766 | ISO (**) | G4 | |
| ROPE SIZE(1) | 1/2″ (12,7 mm) | 1/2″ (12,7 mm) | 1/2″ (12,7 mm) | 1/2″ (12,7 mm) | 1/2″ (12,7 mm) |
(1) The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Quick®” system.
(*) Gypsy codes, see engineering drawings on page 13 of manual
(**) ISO EN 818-3.
Supplied accessories standard
|
Contactor units |
Nylon handle |
Mounting bracket |
|||||||||||||
|
Optional accessories
|
Hydraulic magnetic |
UP/DOWN |
Foot |
handheld |
Chain |
Radio remote |
| Base Model | BL2 P FF 900 | |
| Motor power | 900 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum working load | 300 Kg 661.4 lb |
320 Kg 705.5 lb |
| Maximum chain speed | 22.6 m/min 74.1 ft/min |
25.3 m/min 83 ft/min |
| Protection circuit breaker (1) | 95 A | 50 A |
| Weight | 16,4 Kg 36 lb |
16,4 Kg 36 lb |
| Boat length | 5-9 m 16-29 ft |
5-9 m 16-29 ft |
(1) With circuit breaker designed for direct currents (DC) and delayed-action (thermal-magnetic or hydraulic-magnetic).
Dimensions
Supplied accessories standard
|
Contactor units |
Nylon handle |
Mounting bracket |
|||||||||||||
|
Optional accessories
|
Hydraulic magnetic |
UP/DOWN |
Foot |
handheld |
Chain |
Radio remote |
