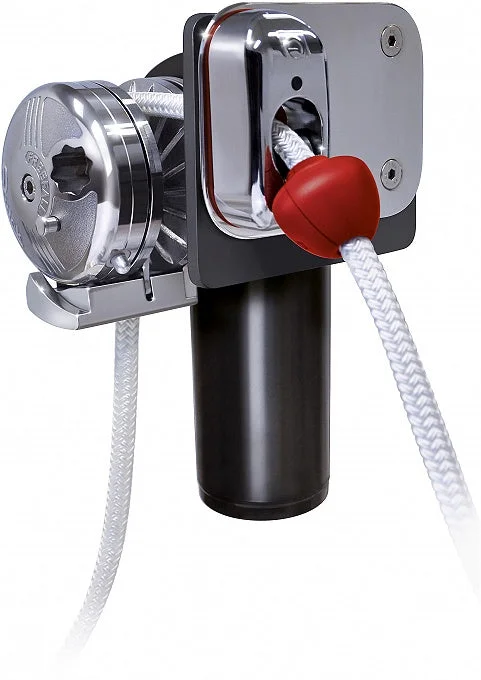

Description
- Rope only windlasses
- Maximum flexibility of installation
- AISI 316 Stainless steel and chromed bronze
- Automatic system of anchor-rode free-fall
- Supplied with rope guide device
- Right or left gypsy fitted in a mounting bracket
- Watertight motor (IP67)
- Technopolymer gearbox
For boats from 6 to 14 meters (19.7 – 46 ft)
| BL2 R | 600 W | 6 – 10 m | 19.7 – 32.8 ft |
| BL2 R | 900 W | 9 – 12 m | 29.5 – 39.4 ft |
| BL2 R | 1200 W | 11 – 14 m | 36 – 46 ft |
Balder FF is the ideal windlass to be installed at the stern thanks to the special mounting kit. However it also adapts perfectly to any requirement and allows several combinations.
| GYPSY | |||
| ROPE | 12 mm | 14 mm | 16 mm |
Recommended leaded rope
Supplied accessories standard
| Mounting Bracket |
| Contactor units | Nylon handle | |||||||||||||||||||||
|
Optional accessories
| The Automatic Stop kit allows you to automatically stop the anchor on its way up leaving it in its stowed position. The Automatic Stop is a simple system composed of a thru-hull fi tting equipped with a sensor and a composite shell, that is easily fi xed to the leaded rope, equipped with magnets. The rope will run freely until the magnets don’t get in contact with the sensor which again will automatically stop the motor by interrupting the electrical circuit.
|
| Safety rope stopper |
Thru-hull T1 | Wall Plate | Thru-hull T2 | Leaded Rope |
| Hydraulic magnetic circuit breaker |
UP/DOWN control board |
Foot Switches |
handheld remote control |
Radio remote control |
| Model | BL2R P FF 1200 X/Y | |
| MOTOR OUTPUT | 1200 W | |
| Motor Supply voltage | 12 V | 24 V |
| Maximum working load | 420 Kg / 926 lb | 420 Kg / 926 lb |
| Working load | 140 Kg / 308.6 lb | 160 Kg / 352.7 lb |
| Absorption at working load | 130 A | 75 A |
| Maximum speed | 28-30 m/min 91-98 ft/min |
|
| Weight | 17,7 Kg / 39 lb |
Dimensions
Supplied accessories standard
| Mounting Bracket |
| Contactor units | Nylon handle | |||||||||||||||||||||
|
Optional accessories
| The Automatic Stop kit allows you to automatically stop the anchor on its way up leaving it in its stowed position. The Automatic Stop is a simple system composed of a thru-hull fi tting equipped with a sensor and a composite shell, that is easily fi xed to the leaded rope, equipped with magnets. The rope will run freely until the magnets don’t get in contact with the sensor which again will automatically stop the motor by interrupting the electrical circuit.
|
| Safety rope stopper |
Thru-hull T1 | Wall Plate | Thru-hull T2 | Leaded Rope |
| Hydraulic magnetic circuit breaker |
UP/DOWN control board |
Foot Switches |
handheld remote control |
Radio remote control |
