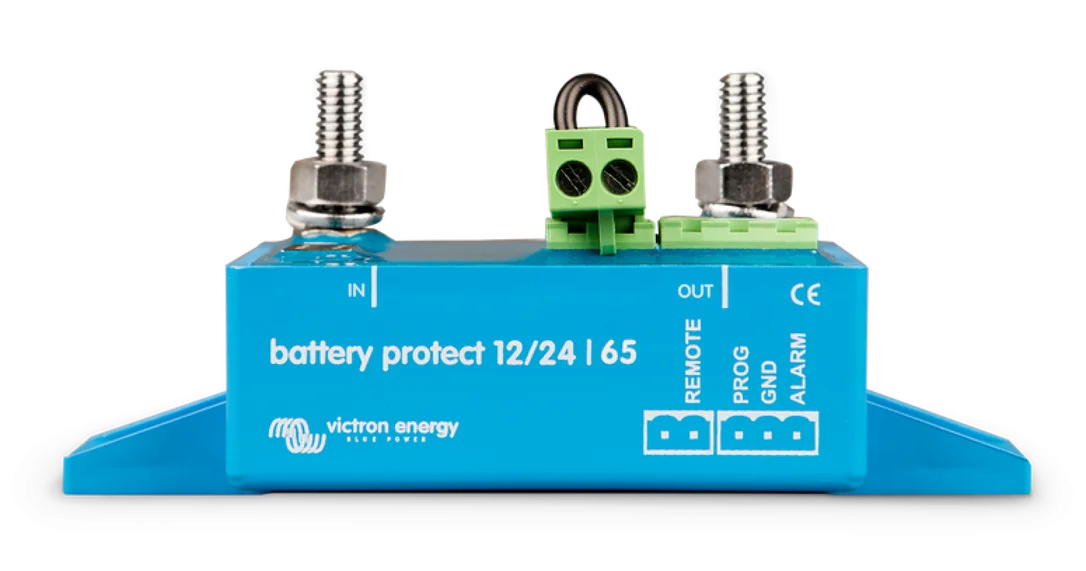

Battery Protect 12/24V-65A (BPR000065400)
Product Information
BatteryProtect
The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
The BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.
12/24V auto ranging
The BatteryProtect automatically detects system voltage
Ultra low current consumption
This is important in case of Li-ion batteries, especially after low voltage shutdown. Please see our Li-ion battery datasheet and the BMS manual for more information.
Over voltage protection
To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage
exceeds 16V respectively 32V.
Ignition proof
No relays but MOSFET switches, and therefore no sparks.
Please see the datasheet in the Additional Information to compare model specifications.
Manual-Battery-Protect-12V-24V-65-A-100-A–220-A-EN-NL-FR-SE-DE-PT-ES-IT
Datasheet-Battery-Protect-65-A–100-A–220-A-EN-
Manufacturer Part Number: BPR000065400
