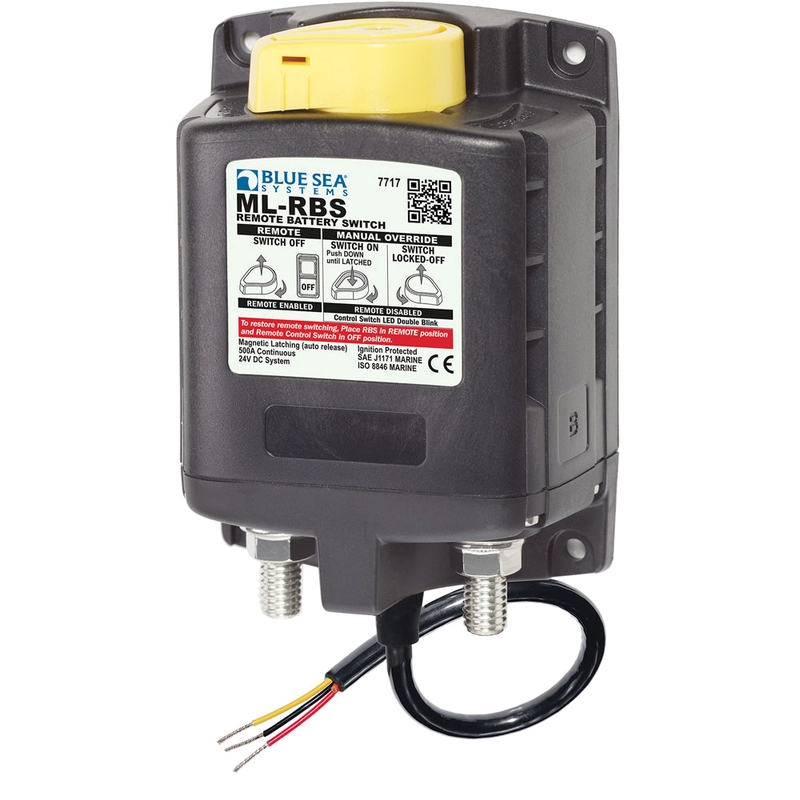

Blue Sea 7717 ML-RBS Remote Battery Switch w/Manual Control Auto-Release – 24V [7717]

Description

ML-RBS Remote Battery Switch with Manual Control Auto-Release – 24V

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state – requires optional LED
• 3/ 8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/ 8″ (22mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Specifications

Control Circuit Connection:Tinned Wire

Nominal Voltage:24V DC

Manual Control:Yes

Coil Function: Auto releasing

Mounting: #10

Amperage Operating Current:8mA when OFF/13mA when ON

Amperage Operating Current when changing state: <4A (40 ms) Control Circuit Voltage: 20.2 to 32.9V DC Continuous Rating: 500A Intermittent Rating: 700A (5 min) Cranking Rating: 10 sec 2500A Cranking Rating: 1 min 1100A Minimum Operating Temperature: -10° C Maximum Operating Temperature: 50° C Cable Size to Meet Ratings: 2x (4/0) Live Current Switching: 300A @ 12V DC 10,000 Cycles Master Control Switch Capability: Yes Mechanical Endurance: 100,000 Cycles Switching Cycles: 100000 Terminal Ring Diameter Clearance: 1.18″ (29.97mm) Terminal Stud Length: 0.875″ (22.23mm) Terminal Stud Size: 3/8-16 (M10) Terminal Stud Torque: 140 in-lb (15.82 Nm) Weight: 1.75lb (0.79 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Lockable: Yes
• Continuous Amperage: 500a
• Box Dimensions: 3″H x 7″W x 12″L WT: 2.2 lbs
• UPC: 632085077143
