Description

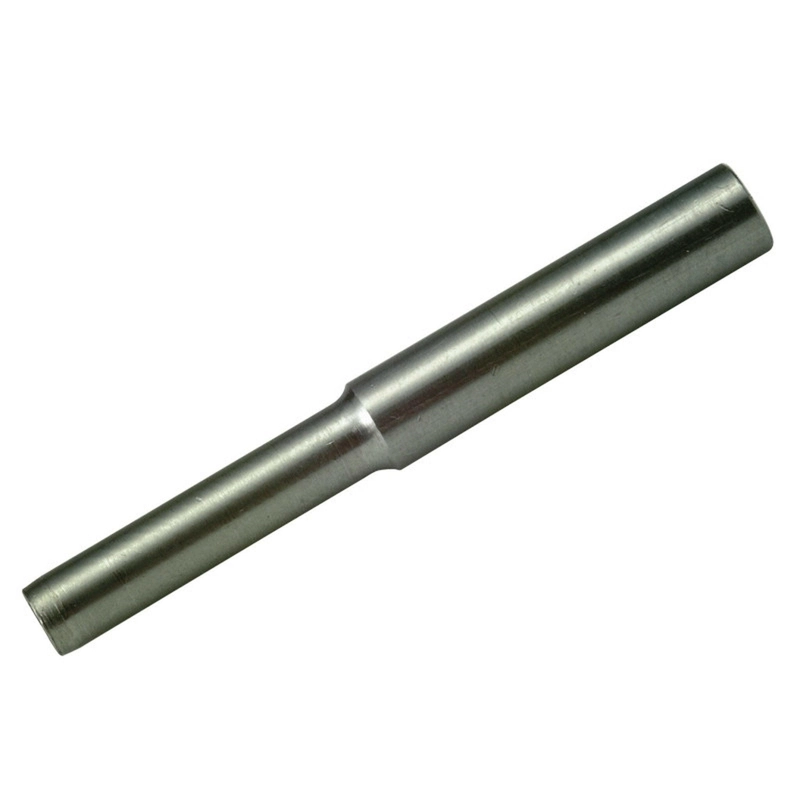

Inside threaded terminal.
Often found to be a good alternative to a standard rigging screw are the inside thread terminals. The terminals are available with right handed threads and left handed on request!For ease of use when pressing or swingeing onto the wire, the terminals are marked with wire size and swage small inside thread terminals are for lighter architectural fixing of wires.
The terminals are available with left-handed and right handed threads, with dimensions reduced to a minimum. Other sizes available to order.
High Polished Stainless Steel – AISI 316
| G | Wire mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
D1 mm |
D2 mm |
Break Load kg |
|---|---|---|---|---|---|---|---|---|
| M6 | 4 | 84 | 45 | 20. | 30 | 7.50 | 8.00 | 1250 |
