Blue Wave Metric Threaded Swage Terminals

Name: Blue Wave Metric Threaded Swage Terminals
SKU: 5485599916190
Availability: InStock

Original price was: £5.00.Current price is: £1.50.

SKU: 5485599916190 Category: new product

Description

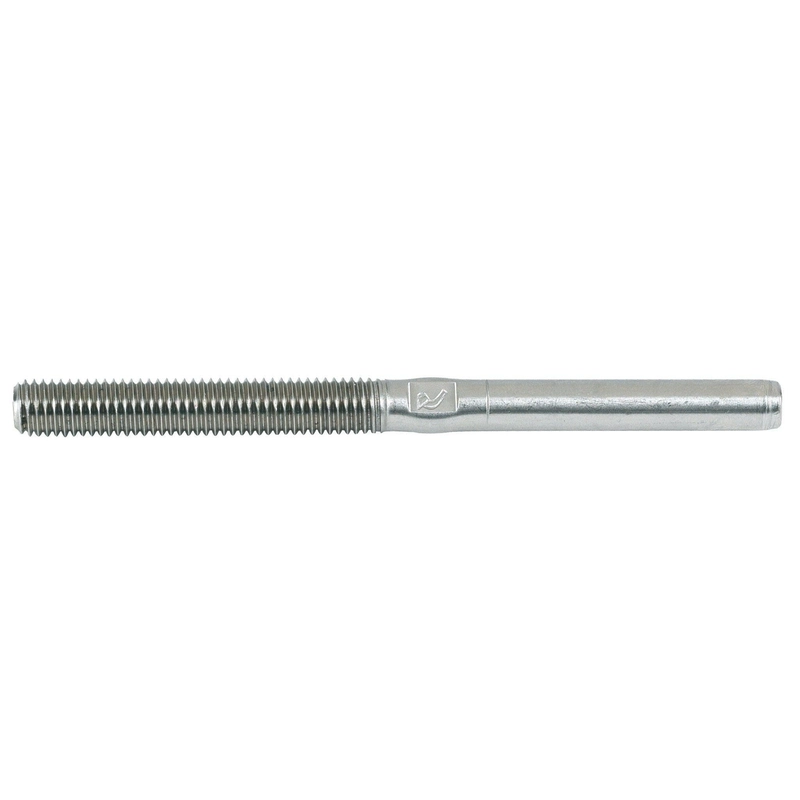

Swage metric stud wire terminal. Other sizes available to order.

Stainless steel AISI 316.

G Metric	Wire Dia.	L1 mm	L2 mm	L3 mm	D mm	Break Load Kg.
M5	2	87	32	42	5.5	800
M5	2.5	87	32	42	5.5	800
M6	3	100	38	48	6.35	1200
M6	4	110	45	48	7.5	1200
M8	4	117	45	45	7.5	1700
M8	5	123	51	57	9.0	2200
M10	6	145	64	63	12.58	3500
M12	6	162	64	80	12.58	5100

mycustom	Wire Size#2.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, M8 x 4mm LH~Hand#Left Hand, Right Hand~Thread Size#M5, M6, M8, M10, M12
