Description

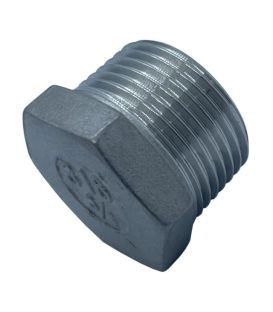

BSP Hexagon Plug – A4 (T316) Marine Grade Stainless Steel – Taper Threads (BSPT / R Thread)
Thread: according to EN 10226-1 (EX ISO 7-1)
Conical male thread
Taper 1:16 on the diameter
The angle of threads 55°
Maximum operating pressure 150 lbs = 10,34 Bar PN 10
Dimensions:
| Size (BSP) | l (mm) | H (mm) | Drawing |
| 1/8″ | 16.8 | 17.7 | |
| 1/4″ | 16.8 | 17.7 | |
| 3/8″ | 18.0 | 18.5 | |
| 1/2″ | 22.0 | 19.5 | |
| 3/4″ | 28.0 | 22.0 | |
| 1″ | 35.0 | 24.8 | |
| 1-1/4″ | 44.0 | 28.8 | |
| 1-1/2″ | 50.0 | 28.8 | |
| 2″ | 62.0 | 33.5 |
Remember, BSP threads are measured differently:
