Description

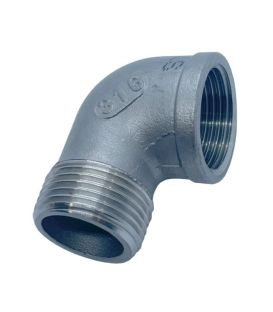

BSP Male/Female 90 Degree Elbow Pipe Fitting – T316 (A4) Marine Grade Stainless Steel
Male thread: Taper Thread (BSPT / R Thread), Female Thread: Parallel (BSPP / G Thread)
British Standard Pipe Thread: according to EN 10226-1 (EX ISO 7-1)
Conical male thread, cylindric female thread
Taper 1:16 on the diameter
The angle of threads 55°
Maximum operating pressure 150 lbs = 10,34 Bar PN 10
Dimensions:
| Size (BSP) | A (mm) | B (mm) | Diagram |
| 1/4″ | 17.6 | 27.0 | |
| 3/8″ | 20.5 | 30.0 | |
| 1/2″ | 20.5 | 30 | |
| 3/4″ | 24.0 | 34.5 | |
| 1″ | 30.0 | 39.5 | |
| 1-1/4″ | 35.5 | 46.5 | |
| 1-1/2″ | 38.5 | 49.5 | |
| 2″ | 48.0 | 60.5 | |
| 2-1/2″ | 62.5 | 87.0 |
Remember, BSP threads are measured differently:
