Description
Environmentally sealed power connectors have been designed into a wide range of markets such as marine, industrial and automotive. Robustly constructed in Polyurethane with an easy turn bayonet coupling mechanism the Bulgin Standard family of connectors are ideal for a variety of high-performance applications that require fast, dustproof and watertight power connections.

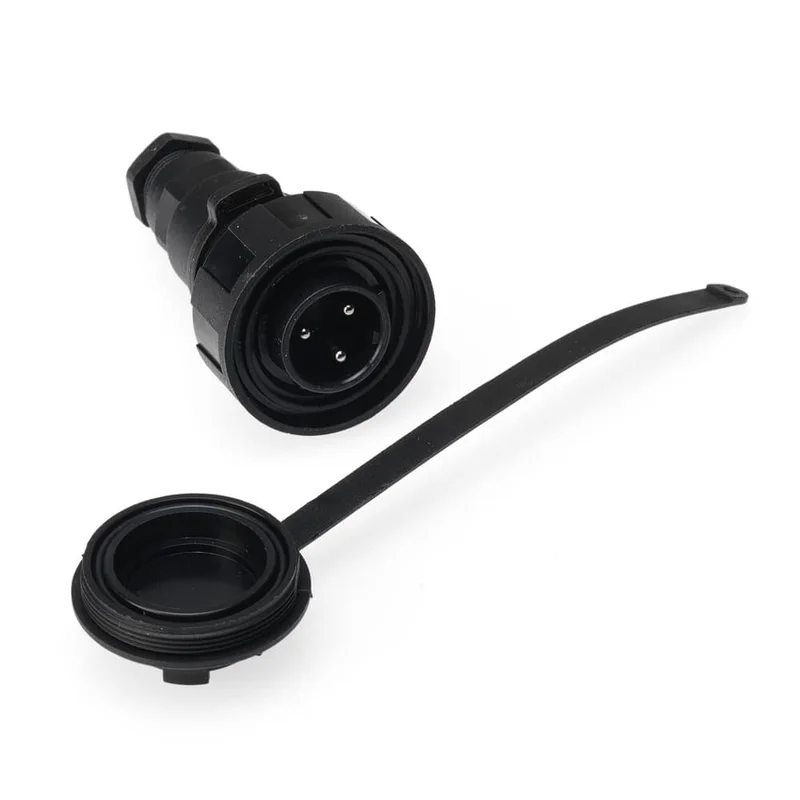

The kit consists of:
1 x flex in-line socket connector
1 x sealing cap
The in-line flex socket provides a waterproof and dustproof connection when mated with the appropriate pin plug connector. The 3 pin socket version has a leading earth contact. Supplied with a sealing cap to maintain IP68 rating when unmated.
Additional information
| Flex Plug Cable Connector Dimensions |
L 69 mm Dia 38 mm |
|---|---|
| Sealing Cap Dimensions |
Plug cap L 16 mm x Dia 38 mm |
| Pin Option |
3 pin |
| IP Rating |
IP68 |
| Max Cable Size |
3.5 mm – 9 mm |
| Material |
Polyurethane |
| Approvals |
UL (E93288 and E337507), CSA (LR80968-30) and VDE (40023148) approvals |
| Packaging |
Re-cycled materials |
