Description
Environmentally sealed power connectors have been designed into a wide range of markets such as marine, industrial and automotive. Robustly constructed in Polyurethane with an easy turn bayonet coupling mechanism the Bulgin Standard Buccaneer family of connectors are ideal for a variety of high-performance applications that require fast, dustproof and watertight power connections.

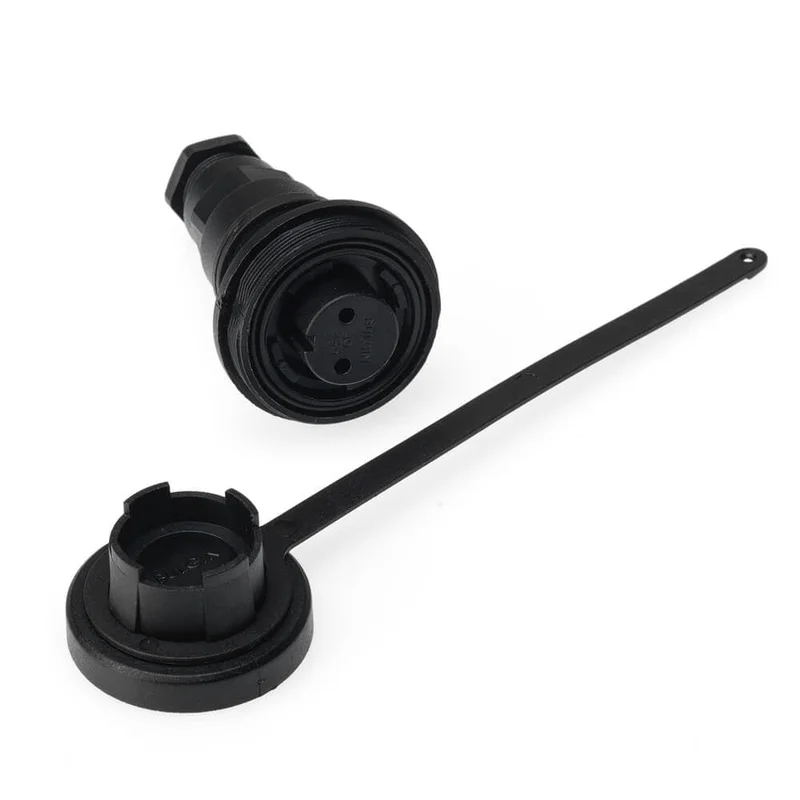

The kit consists of:
1 x flex in-line socket connector
1 x sealing cap
The in-line flex socket provides a waterproof and dustproof connection when mated with the appropriate pin plug connector. The 3 pin socket version has a leading earth contact. Supplied with a sealing cap to maintain IP68 rating when unmated.
| Flex Socket Cable Connector Dimensions |
L 65 mm Dia 38 mm |
|---|---|
| Sealing Cap Dimensions |
Socket cap L 20.5 mm x Dia 38 mm |
| Pin Option |
2 pin |
| IP Rating |
IP68 |
| Max Cable Size |
3.5 mm – 9 mm |
| Material |
Polyurethane |
| Approvals |
UL (E93288 and E337507), CSA (LR80968-30) and VDE (40023148) approvals |
| Packaging |
Re-cycled materials |
