Description

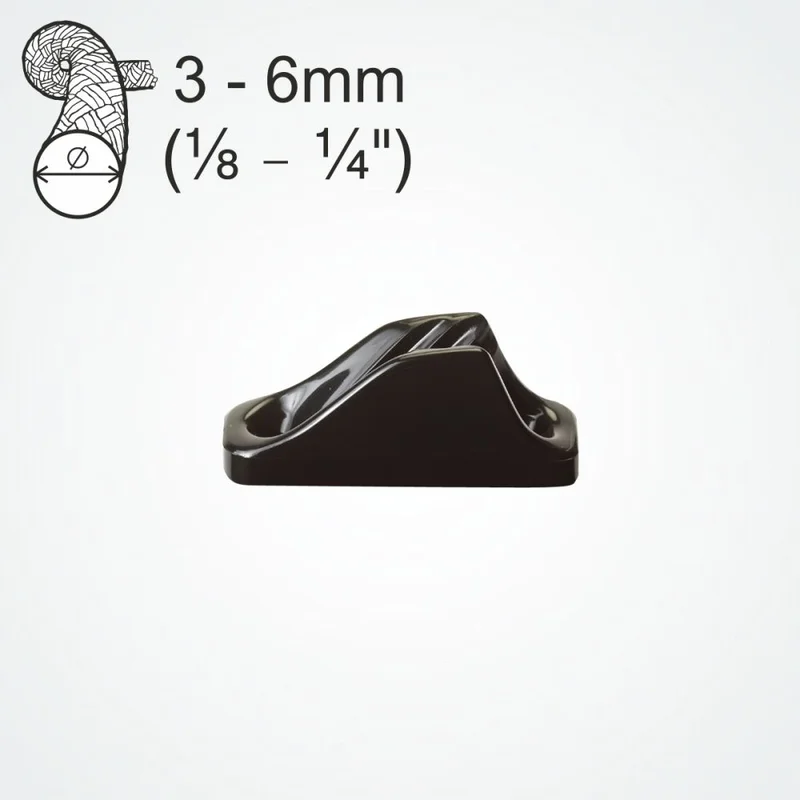

Clamcleat® CL204 is an elegant design in black or white nylon. The rope drops down into the teeth. It can be fitted to all flat and curved surfaces, using rivets, countersunk (flathead) screws or bolts. CL204 can also be sewn, riveted or bolted onto webbing or fabric.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3 – 6mm | 1/8 – 1/4″ | |
| Material | Nylon | Nylon | |
| Hole Centres | 36mm | 17/16″ | |
| Length | 52mm | 2″ | |
| Width | 17mm | 5/8″ | |
| Height | 21mm | 13/16 | |
| Bolt Size | M4 | #8. 5/32″ | |
| Screw Size | 4.2 | No 8 | |
| Weight | 9gms | 0.3oz |
Fixing cleats to Webbing leaflet (1 page)(477.22 kB)Cleats for Sports Nets leaflet (1 page)(169.50 kB)Cleats for Blinds & Shades Leaflet (1 page)(277.70 kB)Mk2 Junior cleat range (2 page leaflet)(475.25 kB)Cleats for Sun shades leaflet (1 page)(354.36 kB)Agricultural Applications for Clamcleat® rope cleats(571.06 kB)CL204-Installation-Drawing (Prints on A4 & US Letter Paper)(56.29 kB)
