Description

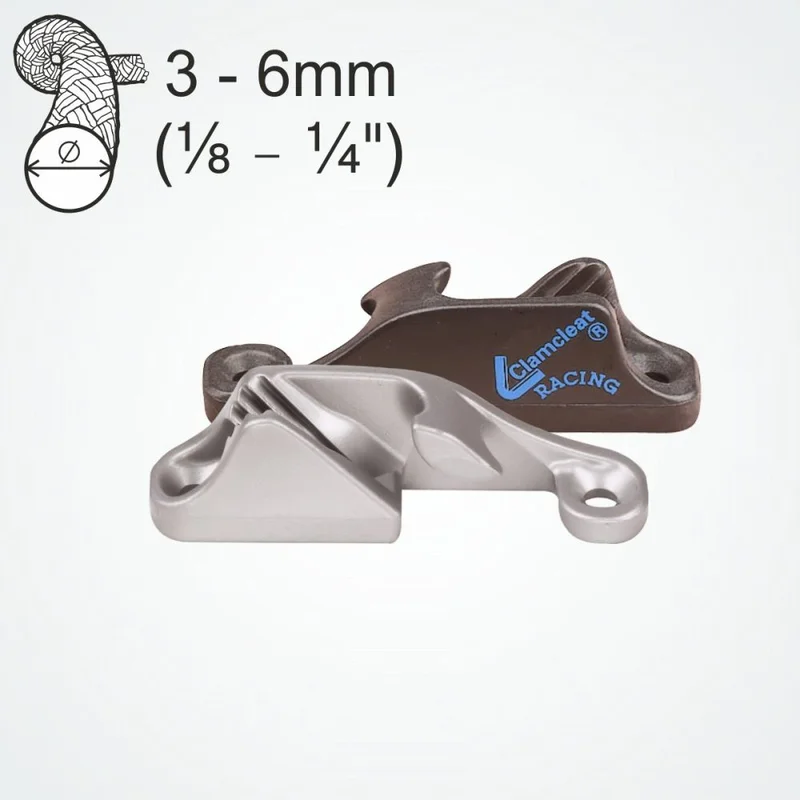

The side entry fairlead allows ropes to be hooked in for cleating, yet easily removed. Ideal as a reaching hook. The CL217 Mk1 can be fitted with a CL814 Keeper, to keep the rope in or out of the teeth – ideal when used under a spar. Using a CL818 Tapered Pad allows the CL217 Mk1 to mounted at an angle.CL217 Mk1 is available in two finishes: 1. CL217 Mk1 has a silver stove enamel finish for a cost effective, high quality coating.2. CL217 Mk1AN has a hard anodised finish to give a hard wearing surface.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3 – 6mm | 1/8 – 1/4″ | |
| Material | Aluminium | Aluminium | |
| Hole Centres | 27mm | 11/16″ | |
| Length | 55mm | 2 1/8″ | |
| Width | 17mm | 11/16″ | |
| Height | 20mm | 25/32 | |
| Bolt Size | M4 | #8-32. 5/32″ | |
| Screw Size | 4.2 | No 8 | |
| Weight | 24gms | 0.8oz |
Cleats for Dinghy masts leaflet (2 pages)(403.90 kB)Mk2 Junior cleat range (2 page leaflet)(475.25 kB)Fitting aluminium cleats to carbon spars(511.57 kB)CL217-Mk2-Installation-Drawing (Prints on A4 & US Letter Paper)(81.88 kB)
