Description
With the CL220 the rope drops down into the teeth to give a quick and positive lock that is easy to release. Manufactured from aluminium for light weight and durable in 2 finishes:-CL220 has a silver stove enamel finish for a cost effective, high quality coating. Suitable for all inland and coastal conditions.CL220VB is unfinished alloy suitable for welding to aluminium profiles, for a strong and permanent fixing on all-welded boats and structures. Ideal for anchor can be less expensive than drilling and using fastening bolts. Use TIG welding.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 12 – 16mm | 1/2 – 5/8″ | |
| Material | Aluminium | Aluminium | |
| Hole Centres | 95mm | 3 3/4″ | |
| Length | 118mm | 4 5/8″ | |
| Width | 37mm | 1 1/2″ | |
| Height | 44mm | 1 3/4 | |
| Bolt Size | M8 (Bolt only) | 5/16″ (Bolt only) | |
| Screw Size | N/A | N/A | |
| Weight | 163gms | 5.7oz |

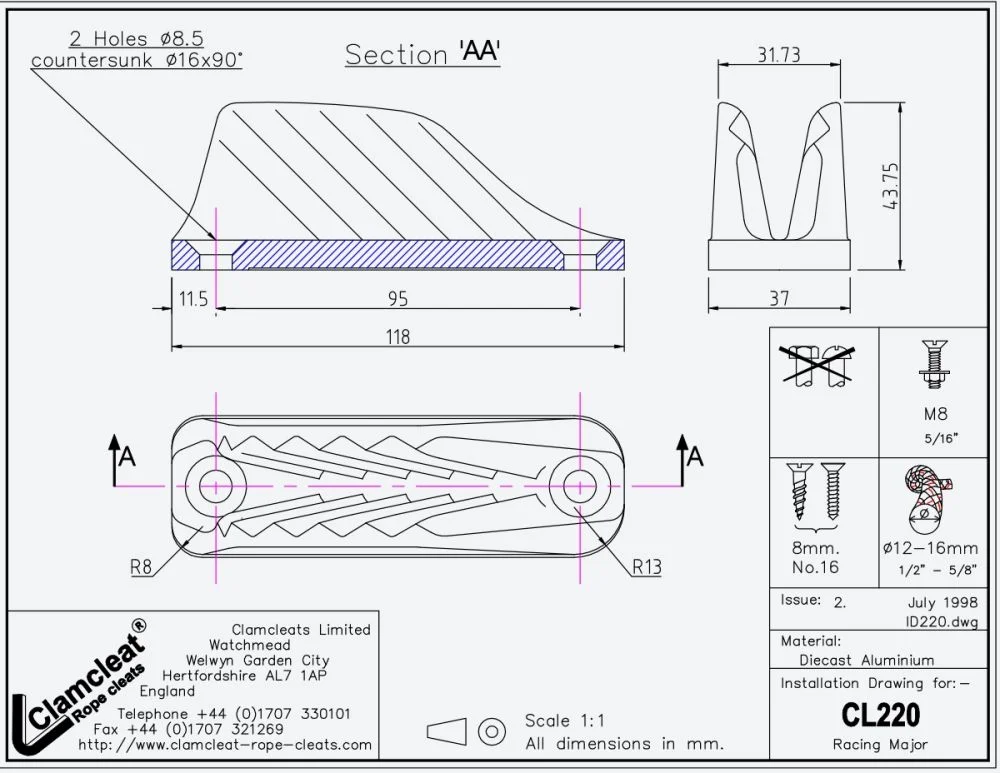

CL220-Installation-Drawing (Prints on A4 & US Letter Paper)(34.37 kB)
