Description

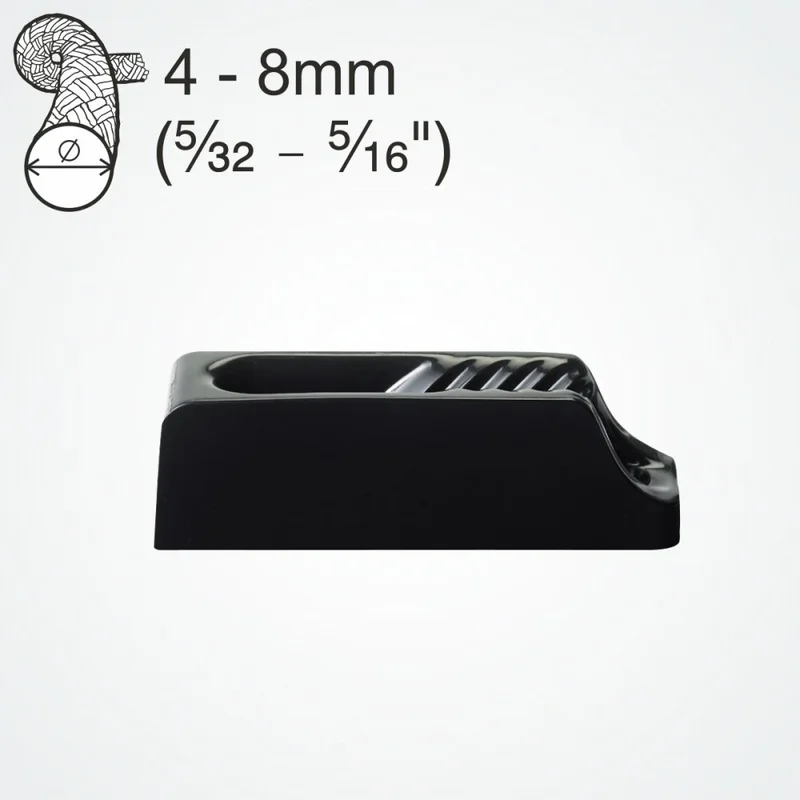

A compact black nylon cleat for 4-8mm ropes. (5/32″ – 5/16″ ropes)The integral fairlead guides the rope into the teeth. Same hole centres as CL209 and CL254.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 4-8mm | 5/32-5/16″ | |
| Material | Nylon | Nylon | |
| Hole Centres | 54mm | 2 1/8″ | |
| Length | 88mm | 31/2″ | |
| Width | 22mm | 1 7/8″ | |
| Height | 26mm | 1 | |
| Bolt Size | M5 (Bolt only) | #10-24. 3/16″ (Bolt only) | |
| Screw Size | 4.8mm | No 10 | |
| Weight | 30gms | 1.1oz |
CL231-Installation-Drawing (Prints on A4 & US Letter Paper)(39.23 kB)
