Description

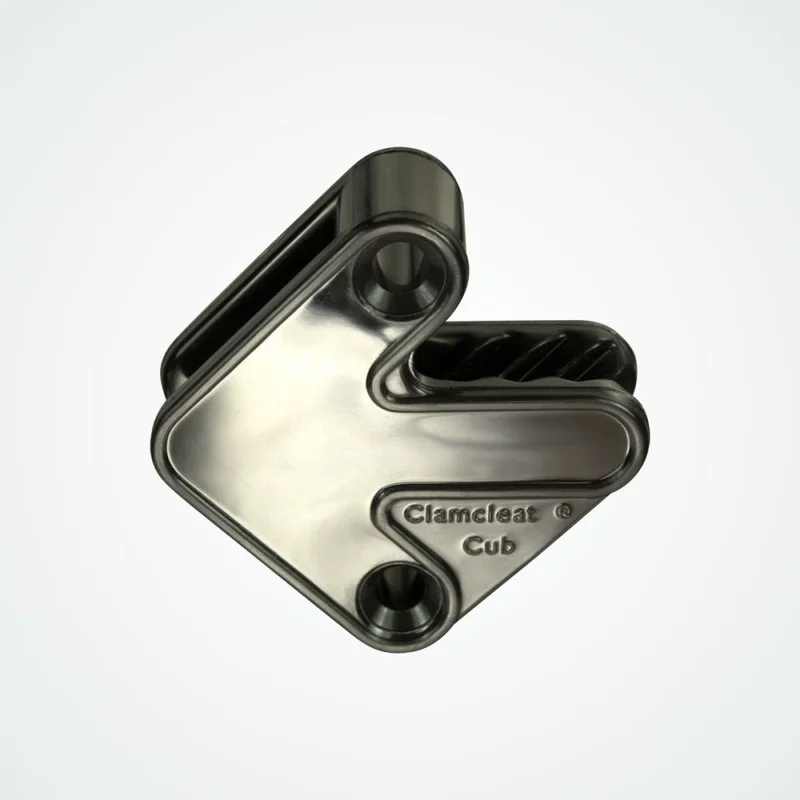

The CL232 is specially designed for those conditions where the rope has to be controlled from a position remote from the cleat. Minimum lift is required to release the rope which is then held in the guide during adjustment ready for instant re-cleating. Ideal for adjusting ropes that run inside versatile cleat can be mounted either way up on vertical or horizontal can also be stacked, to save fixing holes.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3 – 6mm | 1/8 – 1/4″ | |
| Material | Nylon | Nylon | |
| Hole Centres | 35mm | 1 3/8″ | |
| Length | 46mm | 1 13/16″ | |
| Width | 46mm | 113/16″ | |
| Height | 16mm | 5/8 | |
| Bolt Size | M4 | #8-32. 5/32″ | |
| Screw Size | 4.2mm | No 8 | |
| Weight | 13gms | 0.5oz |
CL232-Installation-Drawing (Prints on A4 & US Letter Paper)(58.74 kB)
