Description

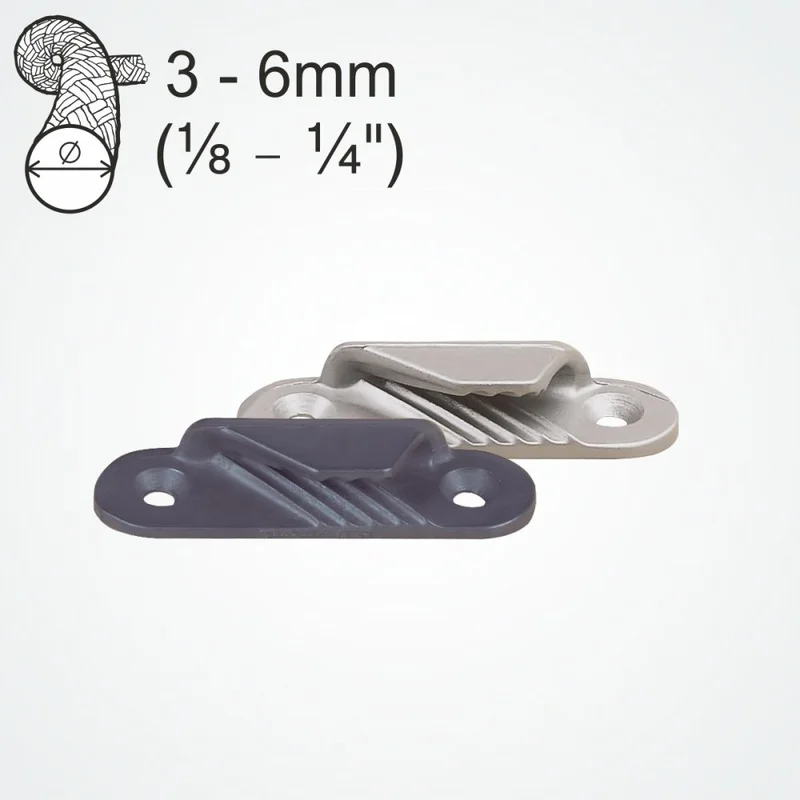

The tooth design of the CL259 Racing Fine Line (Port) allows a quick, positive lock that is easy to release. Add this to its low profile and ability to hold high loads, makes it an ideal cleat for adjusting leech lines on larger sails. Use a backplate when riveting a cleat onto fabric to prevent the rivet pulling through. It can be mounted in two positions and can be sewn or riveted to the sail. The CL259 is usually ftted to the Starboard side of a sail, when used for tensioning leech lines. See the fitting diagrams above.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3-6mm | 1/8 – 1/4″ | |
| Material | Aluminium | Aluminium | |
| Hole Centres | 49mm | 1 15/16″ | |
| Length | 70mm | 2 3/4″ | |
| Width | 21mm | 13/16″ | |
| Height | 14mm | 9/16 | |
| Bolt Size | M4 | #8-32. 5/32″ | |
| Screw Size | 4.2 | No 8 | |
| Weight | 19gms | 0.7oz |
Cleats for Dinghy masts leaflet (2 pages) (403.90 kB)Cleats for Blinds & Shades Leaflet (1 page) (277.70 kB)Sail Cleats leaflet (1 page) (177.66 kB)CL259 3D PDF (Open in Adobe Acrobat Reader) (538.97 kB)CL259-Installation-Drawing (Prints on A4 & US Letter Paper) (67.91 kB)
