Description

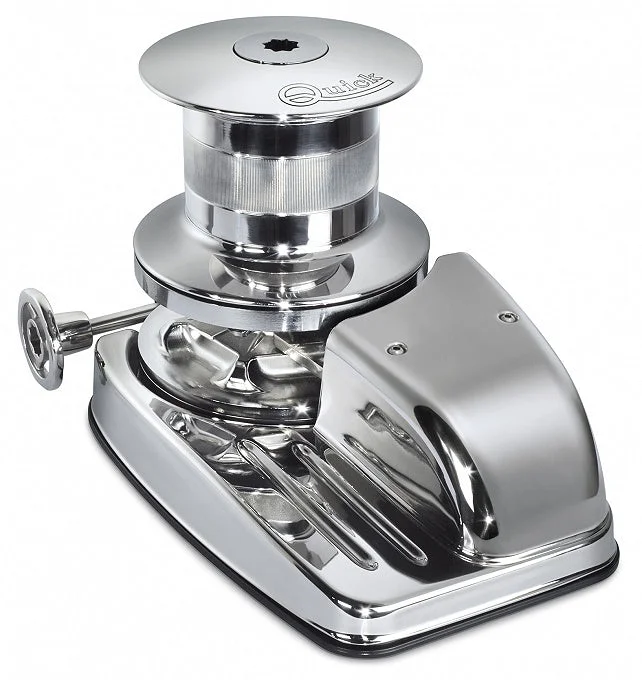

- Vertical windlasses
- Stainless steel Aisi 316 and anodized aluminium base
- Stainless steel Aisi 316 drum and gypsy cover

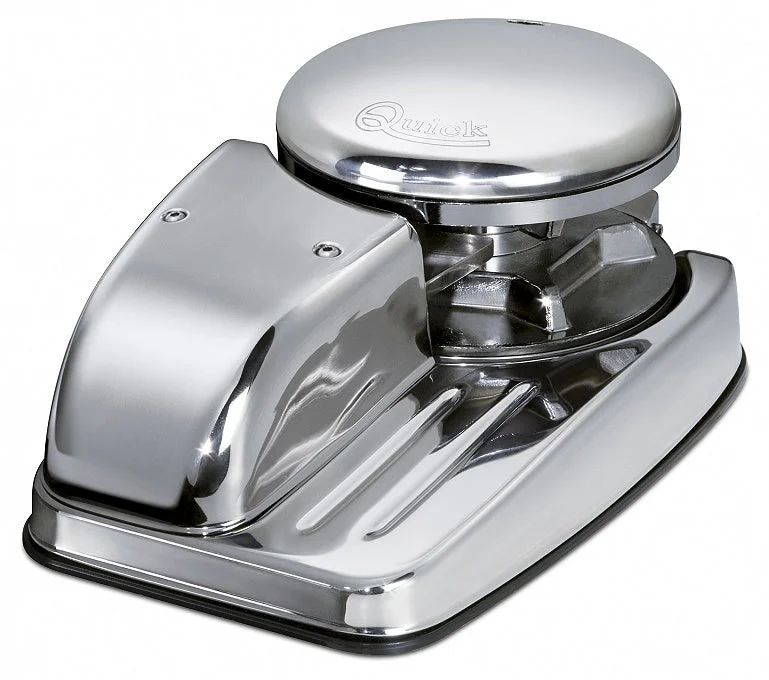

- With and without drum
- Integrated sensor and magnet for chain counter
- Safety mechanical band brake
- Anodized aluminium gearbox
| Duke | 3000 W | DC | 18 – 27 m | 60 – 89 ft |
| Duke | 3500 W | DC | 22 – 29 m | 75 – 95 ft |
| Duke | 4000 W | AC | 18 – 29 m | 60 – 95 ft |
| Duke | 5500 W | AC | 22 – 32 m | 75 – 105 ft |
| Duke | Hydro | 20 – 32 m | 60 – 105 ft |
The indication may vary according to the boat type and the anchor-rode type
| Gypsy and Drum | Ø 200 mm / 7″ 7/8 |
| GYPSY | 12-13 mm | 14 mm – 1/2″ | 16 mm | 12,5 mm | |||||
| CHAIN | 12 mm | 13 mm | 7/16″ | 14 mm | 14 mm | 1/2″” | 16 mm | 16 mm | 12,5 mm |
| ISO | DIN 766 | G4 | DIN 766 | ISO | G4 | DIN 766 | ISO | STUDLINK |
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Slim Splice Quick®” system.
| Standard version | DK6 AC 5500 X/Y – DK6 AC 5500 X/Y D |
| Motor power | 5500 W AC |
| Motor supply voltage | 230/400 V THREE-PHASE* |
| Maximum pull | 4500 Kg 9921 lb |
| Maximum working load | 1700 Kg 3748 lb |
| Absorption @ working load | 12,5 A |
| Maximum chain speed (1) | 20 m/min 65.6 ft/min |
| Weight – Duke – [without drum] | 107 kg 235.9 lb |
| Weight – Duke D – [with drum] | 112 kg 247 lb |
| * | (*) On request available 230V Single-phase motor (for power up to 3000W) |
| 1) | Measurements taken with a gypsy for a 14 mm chain |
Dimensions
Supplied accessories standard
| Stainless steel handle |
Optional accessories
|
Brake control with handwheel |
Chain stopper |
|
electric connection |
Foot |
handheld |
Chain |
Radio remote |
| Electric drive system |
UP/DOWN control board |
Proportional control |
