Description

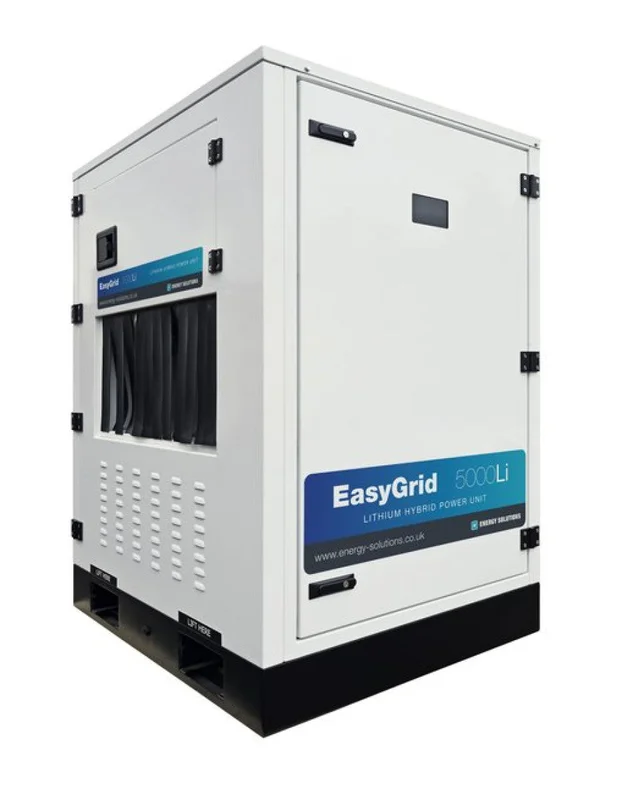

5kVA 1PH EasyGrid hybrid unit in weatherproof enclosure (913 x 913 x 1500mm WxDxH) – includes 48V 15kWh LFP battery pack, 5kVA inverter/charger, touchscreen remote panel with data logging, 6kW 450v solar PV controller and genset auto start connection.
Product Information
Our EasyGrid range offers a sustainable and efficient alternative to using a diesel generator alone in off grid or remote locations. From construction sites to rural homes they can deliver power as needed.
Key Features:
• Ready to Use, pre-configured off grid battery system
• Incorporates DC Coupled MPPT solar charger for either a 6kw or 12kw array
• Incorporates remote monitoring functionality (SIM card or via local network connection)
The EasyGrid unit connects to a generator, and renewables if available, storing energy in it’s battery bank until needed.
When power requirements are low – silent, emission free electricity is supplied from the battery bank, allowing more cost efficient use of the generator. The generator now only needs to run when the loads are high or the batteries need to be topped up.
The EasyGrid range features five capacities each one utilising lithium batteries for the battery bank. Lithium batteries have numerous advantages over traditional batteries – they are faster to charge, offer a longer life expectancy and deliver greater power capacity from a lighter unit – which can be a huge benefit in remote locations.
System options and upgrades – renewable inputs:
Solar:
Adding renewable energy to your EasyGrid is an excellent way of further reducing your fuel costs and emissions. Solar is the most popular upgrade option on the EasyGrid range and gives a reliable input when sized and positioned correctly. Our team can help with determining the correct solar array size for your needs and each unit has detail on the sizing options that work to optimise your power for peak loads.
Each solar panel kit & extension packs comes complete with panels, cables and connectors for your project. Please ask for prices and we can include this with your quotation.
Wind:
All EasyGrid systems have an upgrade option that allows owners to integrate a wind turbine as part of their renewable power input either at time of order or retrospectively. Whilst solar arrays are a good source of renewable power, wind turbines can also deliver valuable additional energy.
Solar power can produce great results when the sun is shining but that may be only for a few hours a day, particularly in the UK. A wind turbine, whilst it may not be as powerful, can be producing power at any point during the course of 24 hours. By integrating this additional renewable source, further reductions in generator run time, emissions and running costs can be achieved.
See Paul explain the easy grid here:
Easygrid Brochure 2024
EasyGrid energy savings datasheet
Manufacturer Part Number:
