Description

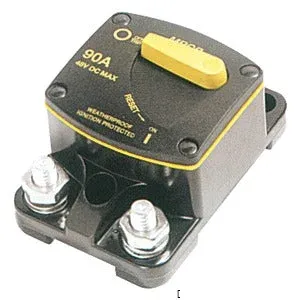

Resettable and releasable by means of a dedicated lever. It works as a fuse and a circuit breaker at a time. Manufactured in compliance with the USA SAEJ1171 and CE 28846 “Vapor Proof” standards,3000-cycle operating capacity. Permitted voltage: max 48V.
Oversized version having 5/16″ (instead of 1/4”) electrical terminals for easier cable connections. The recess fit model only requires a round bore for installation.
| Version | external | Max load A | 200* |
Related Products
| Item | Version | Max load A |
|---|---|---|
| 02.700.50 | For recess fit | 50 |
| 02.700.10 | For recess fit | 70 |
| 02.700.20 | For recess fit | 100* |
| 02.700.40 | For recess fit | 150* |
| 02.700.41 | For recess fit | 200* |
| 02.701.50 | external | 50 |
| 02.701.10 | external | 70 |
| 02.701.20 | external | 100* |
| 02.701.40 | external | 150* |
| 02.701.41 | external | 200* |
UOM: PZ
Height: 5 cm
Weight: 0.21 kg
Width: 9 cm
Cubage: 210 cm³
Length: 6 cm
