Description

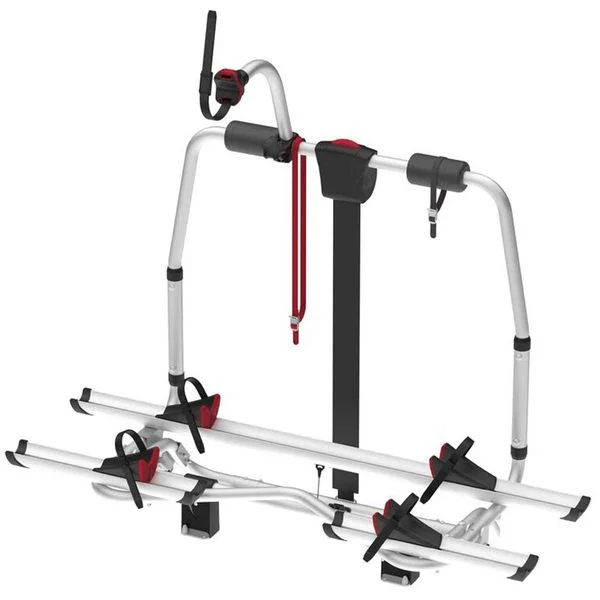

The Fiamma Carry-Bike Caravan Active can be installed on standard A-frame without the need to drill holes. Access to the caravan’s storage compartment is quick and easy thanks to the bike rack’s design and tensioning strap.
The bike rack carries two ebikes or three standard bikes. The upper structure of the rack pivots forward allowing access to the caravan’s storage compartment, even with bikes mounted.
Supplied with:
– 2 x Security strip (1 x red, 1 x black)
– Bike Block Pro S 3 (bike fixing block)
– Rail Premium
– 2 x Mini Rail Premium
– Brackets
Specs:
– Colour: Aluminium
– Vehicle: Caravan
– Bikes carries as standard: 2 ebikes or 3 standard bikes
– Bike carried max.: 2 ebikes or 3 standard bikes
– Max load: 50kg
– Position: A frame
– Dimensions: 128 x 47 x 92cm (with rail support base in standard open position and in models with minimum adjustable vertical wheelbase)
– Weight: 11.2kg
– Distance between rails: 15cm
– A-frame minimum size: 31.5cm
Key Features
Restyled 2023 model
Can be installed on standard A-frame without the need to drill holes
Tensioning strap allows quick access to the storage compartment
Upper part pivots forward allowing access to storage compartment, even when bikes are mounted
| Dimensions | 128 x 47 x 92cm |
| Replaces | Fiamma 02094-05A (Nova 12788) |
| Brand | Fiamma |
| Height | 1300mm |
| Width | 720mm |
| Depth | 240mm |
| Weight | 11.2kg |
| Colour | Aluminium |
| Maximum Load | 50kg |
| Application | Caravans |
| Position | A Frame |
| Capacity | 2 ebikes (Maximum 3 Bikes) |
| Supplied With | Bike-Block Pro S 3, 2 x Mini Rail Premium, Brackets, 2 x Security Strips (black, red) |
| Optional Extras | Bike Block Pro S 2. Rail Premium. Bike Cover. |
| Country of Origin | Italy |
Manufacturer Part Number: 02096-05-
