Description

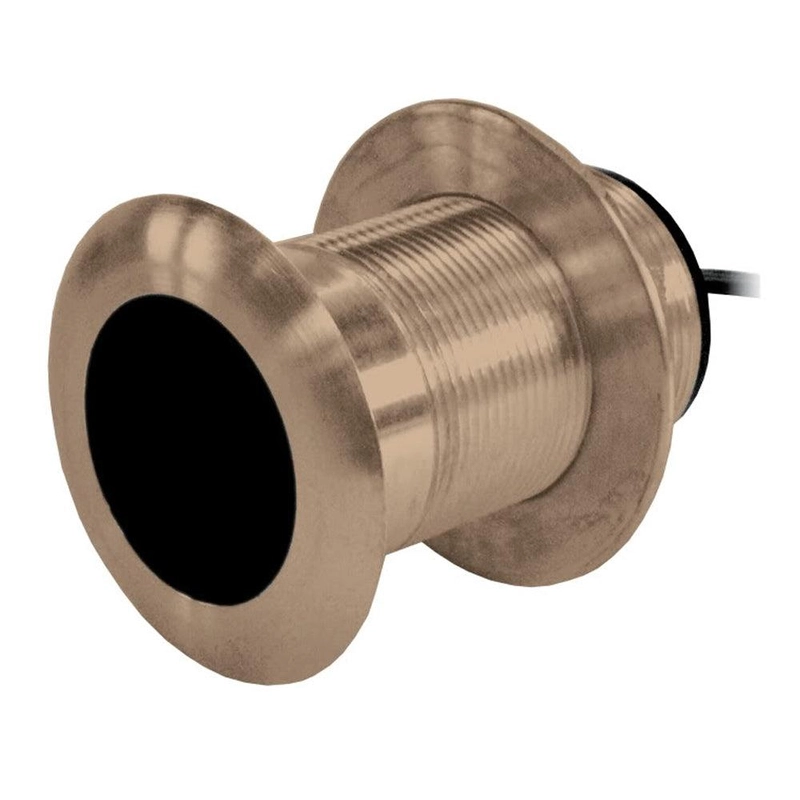

B117 Bronze Thru-Hull Depth/Temp – 8-Pin
This bronze thru-hull mount transducer performs well at high speeds.
An excellent choice for fiberglass and wood hulls, this 8-pin 600 W narrow stem transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Do not use on metal hulls.
When using with a 6-pin Garmin sounder, a transducer adapter cable is required
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: No
- Cable Length (Feet): 39′
- Pins: 8
- Box Dimensions: 4″H x 6″W x 8″L WT: 3.85 lbs
- UPC: 753759971762
Owner’s Manual (pdf)
Brochure (pdf)
