Description

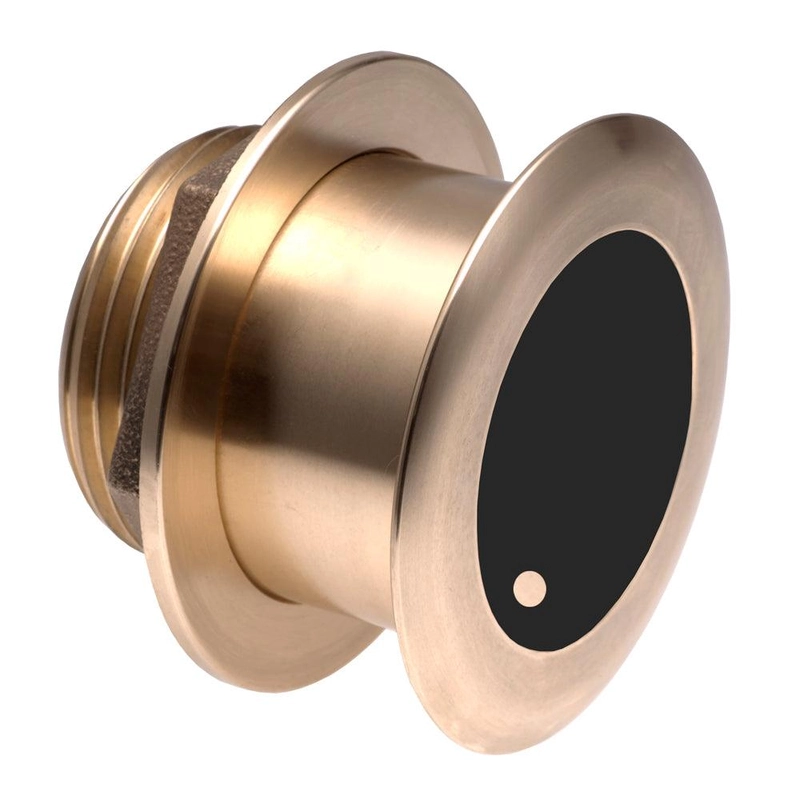

Bronze Thru-hull Wide Beam Transducer w/Depth & Temp – 12° Tilt, 8-Pin – Airmar B175HW
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.
The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.
An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600′; an operating frequency of 150-250 kHz; a beamwidth of 25°; and a 8 to 15° deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 8
- Mounting Style: Thru-Hull
- Imaging: Standard
- Cable Length (Feet): 39′
- Chirp: High Wide
- Box Dimensions: 8″H x 10″W x 12″L WT: 10.7 lbs
- UPC: 753759123543
