Description

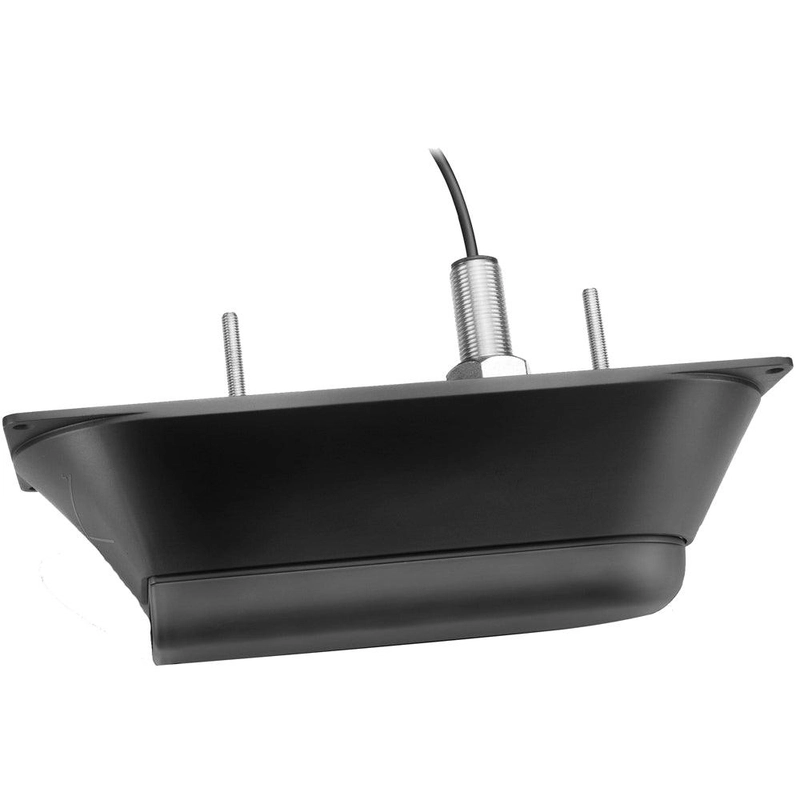

GT23M-TH Stainless Steel, TH Mount Transducer, Mid-Band CHIRP/CHIRP DownVü – 260/455kHz, 500W, 8-Pin
Perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar with a stainless steel stem, this thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP ClearVü (260/455 kHz) element has a power rating of 500 W.
For installation, follow the included instructions carefully to avoid damaging your boat.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
Specifications:
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Chirp: Medium
- Cable Length (Feet): 30′
- Imaging: Standard/Down
- Pins: 8
- Box Dimensions: 6″H x 14″W x 17″L WT: 8.65 lbs
- UPC: 753759148607
Owner’s Manual (pdf)
