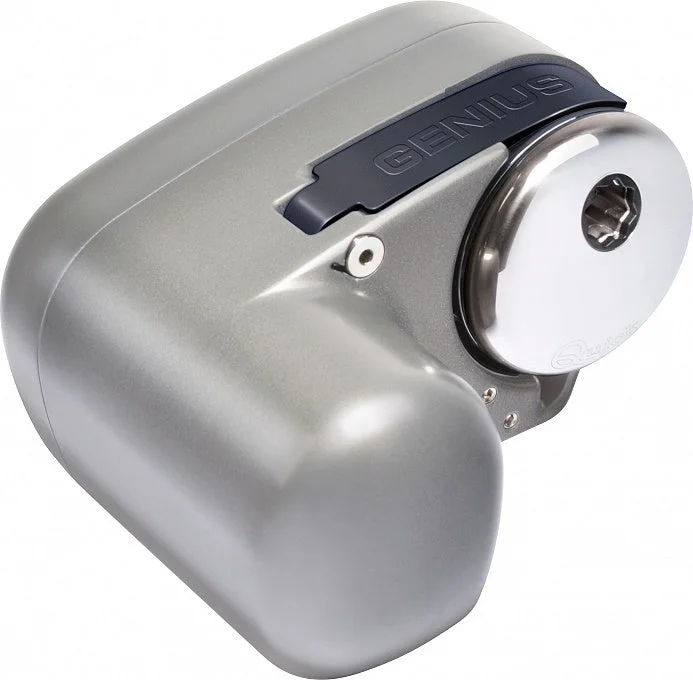

Description
- Horizontal on-deck windlasses
- Anodized alluminium in hard oxide base
- White composite material base (GP2 500)
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Available with manual Free-Fall system (GP2 500 only manual)
- Supplied with pressure lever
- IP66 watertight motor
- Epicyclical gearbox (GP2 1500-2000)
GP2 FF – Automatic Free-Fall System
The Free-Fall technology applied to the Genius windlass allows free running of chain through the gypsy when lowering the anchor; simply by depressing the down control button the windlass will release its clutch and the gypsy will freewheel. To stop the Free-Fall depress the up control button on the windlass; the clutch will engage stopping the gypsy and allowing retrieval of the chain.
| GP2 500 | 150 W | 6 – 8 m | 20 – 26 ft |
| GP2 1200 | 250 W | 6 – 9 m | 20 – 30 ft |
| GP2 1500 | 500 W | 6 – 10 m | 20 – 33 ft |
| GP2 2000 | 800 W | 8 – 13 m | 26 – 43 ft |
| GP2 500 | GP2 1200FF | GP2 1500-2000 | GP2 1500-2000D |
| Available only in composite material and without drum. |
Available with (D) or without drum and in Free Fall (FF) version. Windlasses are equipped with an epicyclical gearbox that provides much higher efficiency (+40% compared to equivalent traditional gearboxes). |
| Gypsy and Drum | Ø 105 mm / 4″ 9/64 |
| GYPSY | 6 mm | 7 mm – 1/4″ | 8 mm | 5/16″ | |||||
| CHAIN | 6 mm | 6 mm | 7 mm | 7 mm | 1/4″ | 1/4″ | 8 mm | 8 mm | 5/16″ |
| DIN 766 | ISO | DIN 766 | ISO | G4 | BBB | DIN 766 | ISO | G4 | |
| ROPE | 1/2″ (12,7 mm) |
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system.
Supplied accessories standard
| Contactor units | Nylon handle | |||||||||||||||||||||
|
Optional accessories
| Platform for GP2 1500 – 2000 (H 40 mm) |
| Hydraulic magnetic circuit breaker |
UP/DOWN control board |
Foot Switches |
handheld remote control |
Chain counters |
Radio remote control |
| Standard version | GP2 2000 / D – GP2 2000 FF | |
| Motor power | 800 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 900 Kg / 1984 lb | |
| Maximum working load | 350 Kg / 772 lb | |
| Working load | 120 Kg / 265 lb | |
| Current absorption @ working load (1) | 96 A | 50 A |
| Maximum chain speed (2) | 29,6 m/min / 97.1 ft/min | |
| Maximum chain speed @ working load (2) | 20 m/min 65.6 ft/min |
20,1 m/min 65.9 ft/min |
| Weight without drum | 10,2 Kg / 22.4 lb | |
| Weight with drum | 11,5 Kg / 25.3 lb | |
| Weight with FF | 10,9 Kg / 24 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 8 mm chain |
Dimensions
GP2 1500 – 1500 D
Deck thickness:
20÷40 mm(25/32″÷1″ 9/16)
On request, shaft and studs can be supplied for greater deck thicknesses.
Dimensions in mm (inch)
Supplied accessories standard
| Contactor units | Nylon handle | |||||||||||||||||||||
|
Optional accessories
| Platform for GP2 1500 – 2000 (H 40 mm) |
| Hydraulic magnetic circuit breaker |
UP/DOWN control board |
Foot Switches |
handheld remote control |
Chain counters |
Radio remote control |
