Description

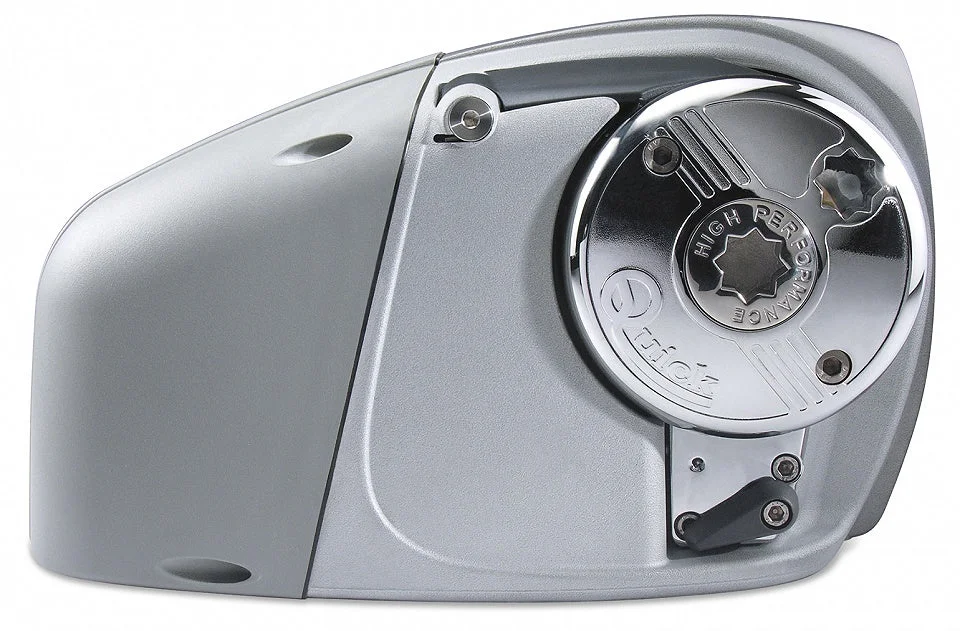

- Horizontal on-deck windlasses
- Base in anodized aluminium in hard oxide
- Jacket in composite material or in alluminium anodized in hard oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Supplied with pressure lever
- Integrated solenoids unit
- Emergency manual lift system
- Manual Free-Fall system
- IP66 watertight motor
| Hector | 700 W | 7 – 10 m | 23 – 33 ft |
| Hector | 1000 W | 10 – 13 m | 33 – 43 ft |
| Hector | 1500 W | 12 – 15 m | 39 – 50 ft |
| Gypsy and Drum | Ø 130 mm / 5″1/8 |
| GYPSY | 8 mm – 5/16″ | 10 mm – 3/8″ | ||||
| CHAIN | 8 mm | 8 mm | 5/16″ | 5/16″ | 10 mm | 3/8″ |
| DIN 766 | ISO | G4 | BBB | ISO(P.30) | G4 | |
| ROPE | 1/2″ (12,7 mm) – 9/16″ (14,2 mm) – 5/8″ (15,8 mm) | 5/8″ (15,8 mm) |
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Quick®” system.
Optional accessories
|
Hydraulic magnetic |
UP/DOWN |
Foot |
handheld |
Chain |
Radio remote |
| Standard version | Hector 1500 / D / DB | |
| Motor power | 1500 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 1500 Kg 3307 lb |
1500 Kg 3307 lb |
| Maximum working load | 450 Kg 992 lb |
550 Kg 1212.5 lb |
| Working load | 150 Kg 331 lb |
185 Kg 408 lb |
| Current absorbtion @ working load (1) | 150 A | 85 A |
| Maximum chain speed (2) | 32,4 m/min 106.3 ft/min |
40.9 m/min 134.2 ft/min |
| Maximum chain speed @ working load (2) | 17,8 m/min 58.4 ft/min |
19,2 m/min 63 ft/min |
| Weight- H – [without drum] | 24 Kg / 52.9 lb | 24 Kg / 52.9 lb |
| Weight – HD – [with drum] | 25,4 Kg / 56 lb | 25,4 Kg / 56 lb |
| Weight – HDB – [drum on the gypsy ] | 26,6 Kg / 58.6 lb | 26,6 Kg / 58.6 lb |
| Weight – H – Aluminium jackets – [without drum] | 25,5 Kg / 56.2 lb | 25,5 Kg / 56.2 lb |
| Weight – HD – Aluminium jackets – [with drum] | 26,9 Kg / 59.3 lb | 26,9 Kg / 59.3 lb |
| Weight – HDB – Aluminium jackets – [drum on the gypsy] | 28,1Kg / 61.9 lb | 28,1Kg / 61.9 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 8 mm chain |
Dimensions
Hector 1500
Deck thickness:
20÷60 mm (25/32″÷2″ 11/32)
On request, studs can be supplied for greater deck thicknesses.
Dimensions in mm (inch) Hector 1500
Right gypsy
Single gypsy Hector DB 1500
Right gypsy – Rightdrum
Drum on the gypsy Hector D 1500
Right gypsy – left drum
Gypsy and drum
Supplied accessories standard
| Technopolymer handle |
Optional accessories
|
Hydraulic magnetic |
UP/DOWN |
Foot |
handheld |
Chain |
Radio remote |
