Description

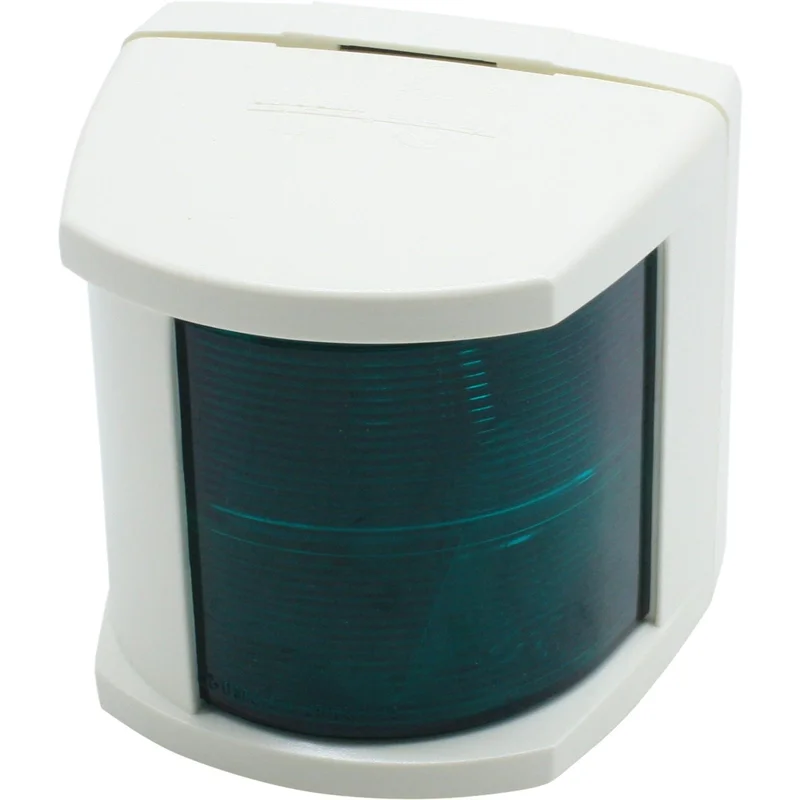

Hella 2984 navigation light housed in a UV and impact resistant white plastic body. This is a Starboard Green navigation light suitable for vessels under 20 metres in length. It has a 112.5° arc with a 12 volt incandescent bulb included, which can be easily accessed and changed due to the ‘snap lock’ housing. This series of navigation lamps feature a vertically hanging bulb, with contacts in the upper area of the lamp which will help prevent corrosion. The Hella 2984 navigation light is suitable for vertical surface mount and cable entry comes through the base plate. This navigation light is rated IP55 for water ingress.
This 12v light can be used on 24v systems if a 24v bulb is fitted.
| Case Colour | White |
| Material | Plastic |
| Bulb | Incandescent |
| Primary Construction | Plastic |
| Suitable For | Vessels under 20 Metres / 65.6 feet |
| Bulb | BAY15d Incandescent |
| Light Arc | 112.5 Degrees |
| Light Colour | Starboard Green |
| Visibility | 2 Nautical Miles |
| Brand | Hella |
| Voltage | 12V DC |
| Wattage | 25W |
| Amps | 2.08A |
| Approvals | Approved to BSH |
| Height | 108mm (4.25″) |
| Width | 107mm |
| Depth | 90mm |
Technical Article – Lighting: Navigation Lights
Manufacturer Part Number: 2LT 002 984-395
