Description

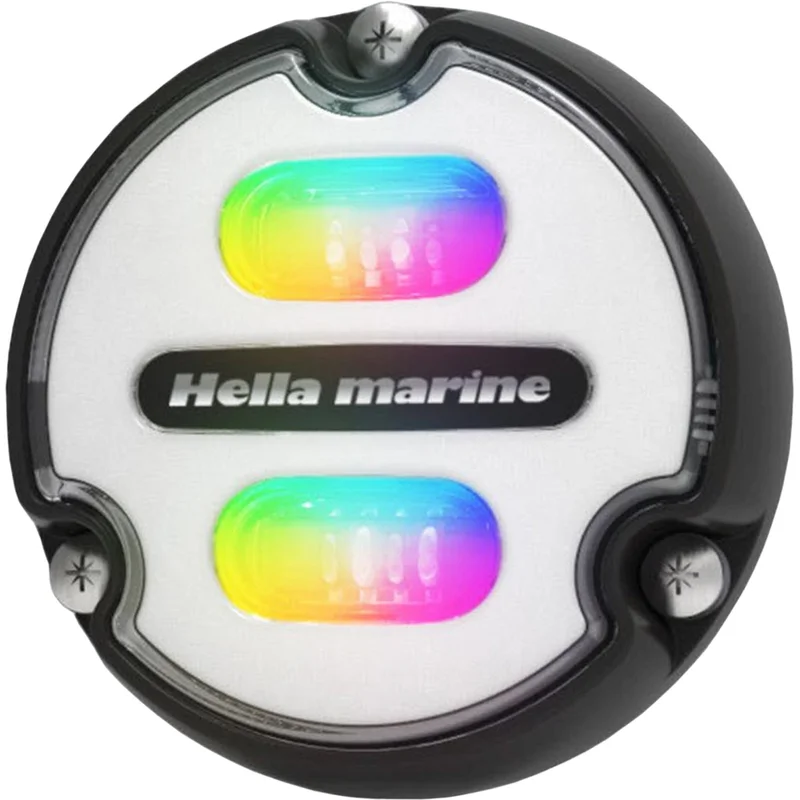

Hella Apelo A1 underwater lights are designed purely for underwater use. Hella 2LT 016 146-012 features RGB LEDs, with a black plastic housing and a white lens. The Apelo RGB underwater light allows you to take complete control and choose any colour you wish, in addition to the Blue/White settings and toggle to select constant or strobe light. Simply connect your lamps to an RGB lighting controller.
– Optical Intelligence: Wide horizontal illumination with a narrow vertical angle for spectacular effect.
– Completely sealed and electronically protected.
– Robust surface mount design.
– Advanced thermal management ensuring ongoing protection and no damage by operation out of the water.
– Suitable for any hull material.
| Case Colour | Black |
| Material | Housing: ‘non-metal’ corrosion-resistant thermal polymer, Lens: high-strength, UV-resistant, optical Grilamid nylon |
| Bulb | LED |
| Bulb | LED |
| Light Colour | Cool White (6000K) & RGB |
| Brand | Hella |
| Series | Apelo |
| Model | A1 |
| Voltage | 12V & 24V DC (9V – 32V DC), Spike protected to: +500V, Reverse Polarity protected to: -700V |
| Wattage | 15W |
| Amps | < 1.25A at 12V, < 0.63A at 24V |
| Approvals | CE & ISO 8846 (Ignition Protection) |
| Depth | 140mm |
| Length | 2.5m (8ft) of 5-Core Marine Cable |
| Weight | 0.30kg |
| Diameter | OD: 95mm (3.74″), Cable Hole: 15mm (0.59″) |
| Dimensions | Screw Hole PCD: 83.5mm (3.28″) |
| Warranty | 5 Years |
hella apelo datasheethella apelo underwater surface mounting advisory
Manufacturer Part Number: 2LT 016 146-012
