Description
The Hella EuroLED 75 series of cabin lights are designed to provide a broad, even spread of light in a stylish low profile body. The low power LED bulb offers power and heat reductions on board, whilst being a durable, solid state light which you can rely on. The EuroLED 75 is supplied with a 150mm length of marine grade electrical cable and can be fully controlled and dimmed via Voltage Resistive or PWM dimming products such as ASAP Part Number 719195.

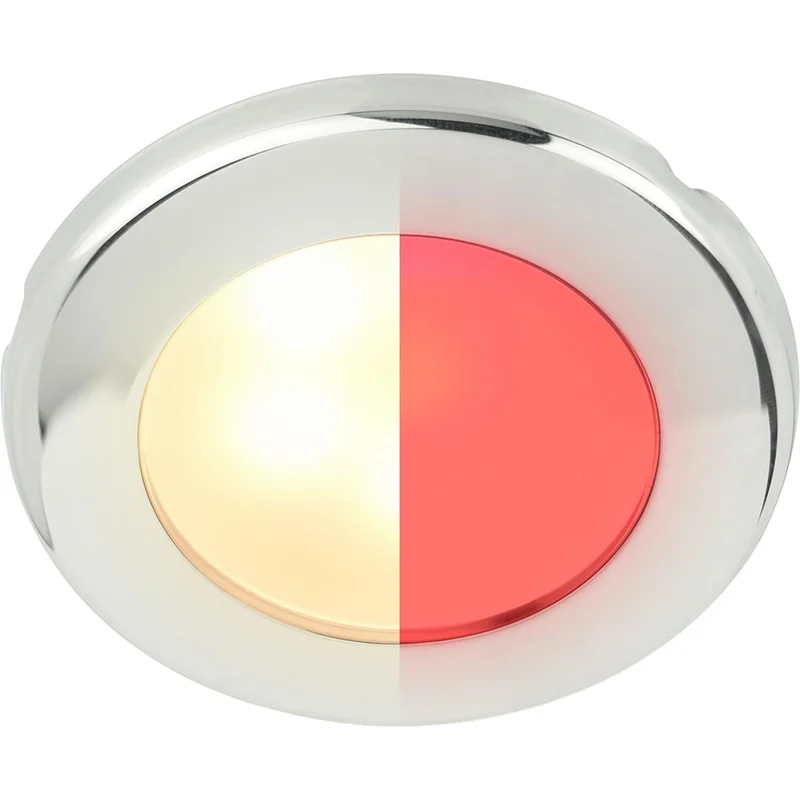

The 2JA 015 247-021 model features a marine grade stainless steel 316 round outer rim. The light is installed into a 50mm diameter recess with spring clips. It provides warm white (2700K) light as well as a secondary red light for better visibility at night time. These lights are suitable for use on 9-16V DC electrical systems. The light is completely sealed (IP 6K9K) and is covered by Hella’s 5 year warranty for faults in material, components or workmanship. They are aimed to give a real ‘fit and forget’ solution to interior lighting.
| Case Colour | Stainless Steel |
| Material | Acrylic lens with stainless steel 316 rim |
| Bulb | LED |
| Primary Construction | Stainless Steel 316 |
| Switched | No |
| Bulb | LED |
| Light Colour | Warm White (2700K) & Red |
| Light Output | 190 Lumens |
| Screw Size | Hole: 4mm (0.16″) |
| Brand | Hella |
| Series | EuroLED 75 |
| Model | 2JA 015 247-121 |
| Voltage | 12V DC (9V – 16V DC) |
| Wattage | 3W |
| Amps | < 190mA at 12V DC |
| Approvals | CE, RCM |
| Depth | Overall: 23.5mm (0.92″), Recess: 16mm (0.63″) |
| Diameter | Overall: 72mm (2.83″), Recess: 50mm (1.96″), PCD: 57mm (2.24″) |
| Warranty | 5 Years |
hella euroled 75 light instruction sheet
Manufacturer Part Number: 2JA 015 247-121
