Description

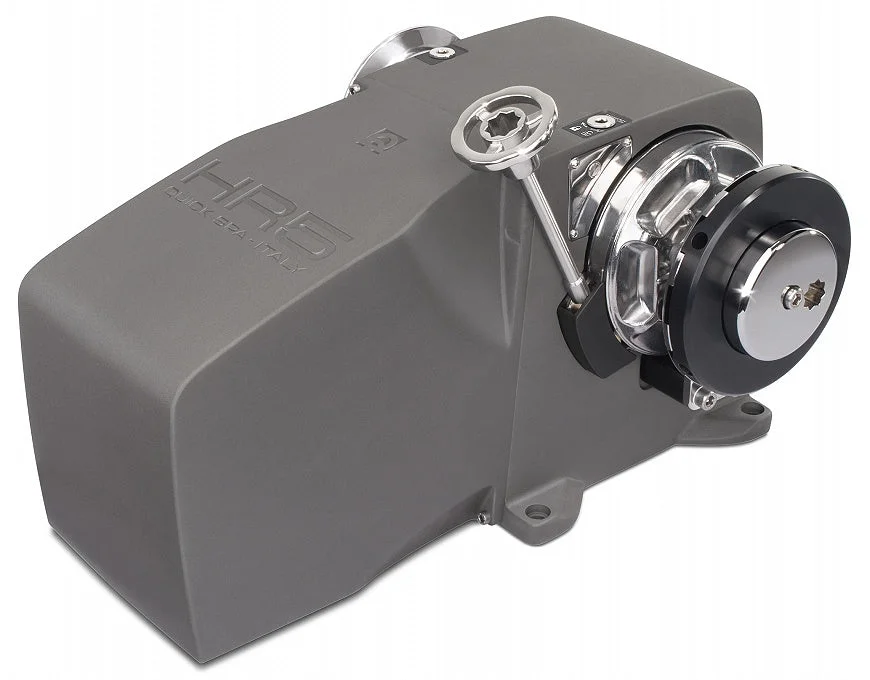

- Horizontal on-deck windlasses
- Painted aluminim base (RAL 9010)
- With and without drum
- Rope and chain on a single gypsy
- Emergency ratchet-operated manual lift system
- Integrated solenoids unit
- Manual Free-Fall system
- Safety mechanical band brake
- IP66 watertight motor
| Heroes | 1700 W | 12 – 16 m | 39 – 52 ft |
| Heroes | 2300 W | 15 – 20 m | 49 – 66 ft |
| Heroes | 3000 W | 20 – 24 m | 66 – 79 ft |
| Heroes | AC 3000 W | 15 – 20 m | 49 – 66 ft |
Available on request with hydraulic motor (HR5 Hydro)
| Gypsy and Drum | Ø 150 mm / 6″21/64 |
| GYPSY | 10 mm – 3/8″ | 12/13 mm | 14 mm | |
| CHAIN | 10 mm | 12 mm | 13 mm | 14 mm |
| ISO (P.30) | ISO | DIN 766 | DIN 766 |
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Quick®” system.
| Standard version | HR5 1700 / D | |
| Motor power | 1700 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 1700 Kg 3748 lb |
1700 Kg 3748lb |
| Maximum working load | 500 Kg 1102 lb |
600 Kg 1323 lb |
| Working load | 200 Kg 441 lb |
250 Kg 551lb |
| Current absorbtion @ working load (1) | 180 A | 110 A |
| Maximum chain speed (2) | 24,2 m/min 79.4 ft/min |
34,5 m/min 113.2 ft/min |
| Maximum chain speed @ working load (2) | 15,3 m/min 50.2 ft/min |
16,9 m/min 55.4ft/min |
| Weight – HR5 XD-BX / XB-DX | 59 Kg 130 lb |
59 Kg 130 lb |
| Weight – HR5 DB-DX / XD-BD | 64 Kg 141 lb |
64 Kg 141 lb |
| Weight – HR5 XB-BX | 66 Kg 145.5 lb |
66 Kg 145.5 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 12/13 mm chain |
Dimensions
HR5 170-2300-3000
Deck thickness:
30÷70 mm (1″ 3/16 ÷ 2″ 3/4)
On request, studs can be supplied for greater deck thicknesses.
Dimensions in mm (inch) HR5 170-2300-3000
XB / BX HR5 170-2300-3000
XD / BD HR5 170-2300-3000
XD / BX
Supplied accessories standard
| Stainless steel handle |
Optional accessories
| Hydraulic magnetic circuit breaker |
UP/DOWN control board |
Foot Switches |
Proportional control |
handheld remote control |
Chain counters |
Radio remote control |
