Description

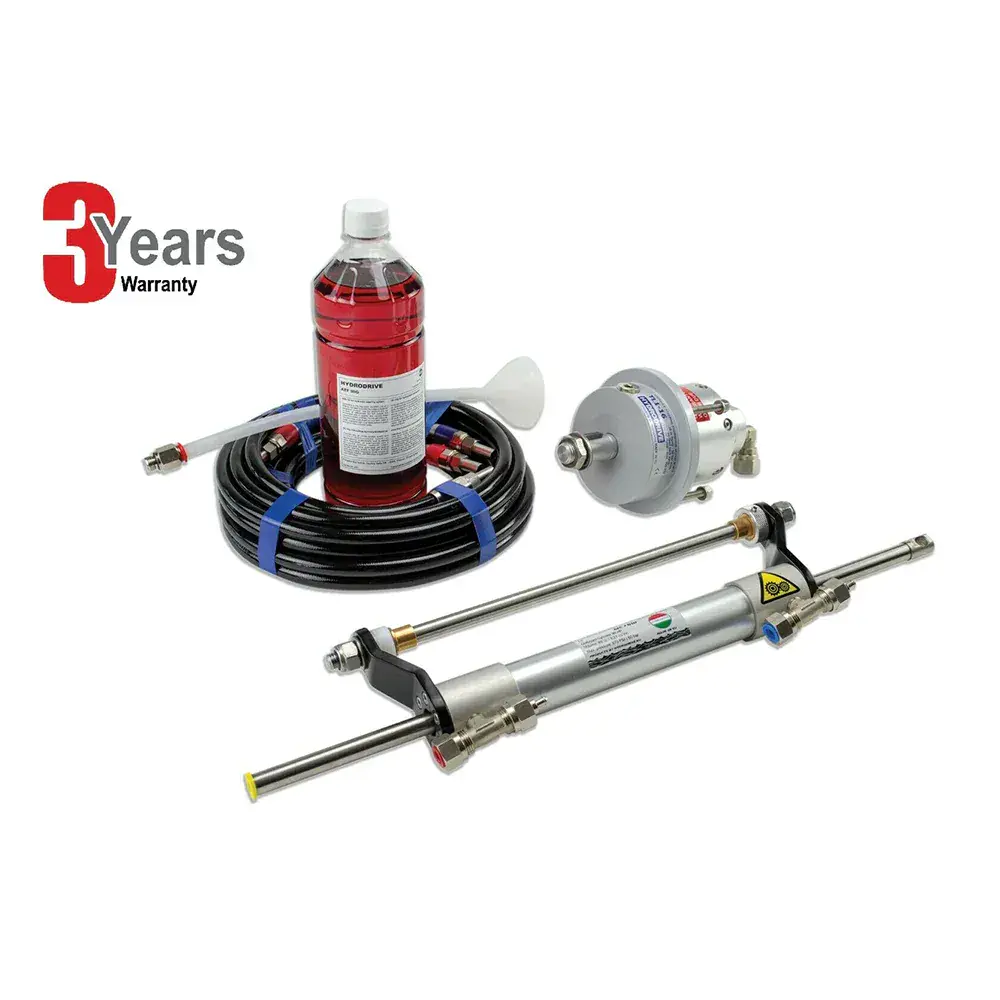

Hydrodrive MF75W outboard hydraulic steering system for engines up to 75HP with fixed cylinder.
The pump is made of hardened, hot-pressed aluminium
Anodised and painted pump house, manufactured by precision CNC
Cylinder made from cold-drawn, hardened anodised and painted aluminium
Universal fittings Hydrodrive systems can be used on every type of outboard engine.
Easy installation process
Hydraulic Pump: TL1-16, 16 cc pump, max 60 bar
Hydraulic cylinder: MC 75W, 68 cc volume, Max 60 bar, Stroke 202 mm
4+4 m (13) high-pressure twin hose set with fittings, 1 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.)
Turns: 4,4
Output force: 220 kgf (485 lbf)
Torque: 46 kgm (333 lbf-ft)
Max speed: 30 knots (55 km/h)
Why Hydrodrive systems are different from other brands?
Flexible, high-pressure (twin) hose set with fittings
3 years of warranty
Quick and easy installation method
Average product life of more than 8+ years
No oil-top-ups
No ordinary maintenance during life time.
Universal Applications: Designed to seamlessly fit leading marine engine brands such as Yamaha, Mercury, Evinrude, Suzuki, and more
Technology from the aircraft industry: Hydrodrive systems ensure smooth and accurate manoeuvring in any conditions.
Overload Protection: Hydraulic systems offer inherent overload protection mechanisms. By controlling the pressure or flow rate within the system, Hydrodrive systems can prevent damage caused by excessive forces or torque.
