Description
Environmentally sealed power connectors have been designed into a wide range of markets such as marine, industrial and automotive. Robustly constructed in Polyurethane with an easy turn bayonet coupling mechanism the Bulgin Standard Buccaneer family of connectors are ideal for a variety of high-performance applications that require fast, dustproof and watertight power connections.

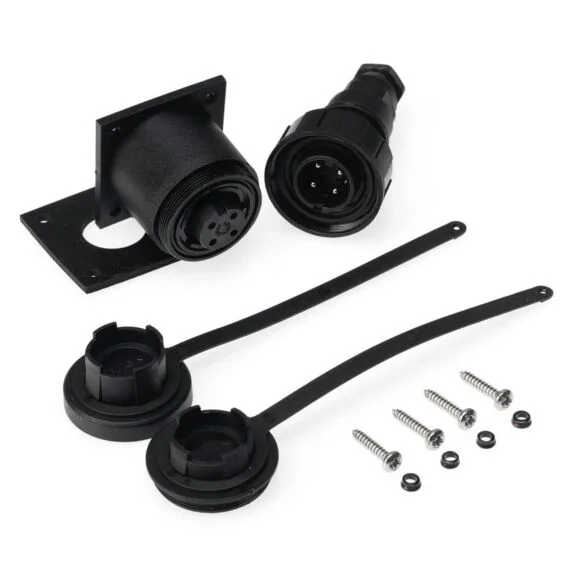

The kit consists of:
1 x bulkhead flange mount connector
1 x flex plug connector
2 x sealing cap
The bulkhead flange mount socket provides a waterproof and dustproof connection when mated with the appropriate pin flex connector. The 3 pin socket version has a leading earth contact. The flange mount is screw fixed with supplied with a sealing gasket and screw sealing grommets. Both plug and mount socket connectors are supplied with a sealing cap to maintain an IP68 rating when unmated.
Bulkhead flange mount and flex connector are available in 2 pin, 3 pin, 4 pin, 6 pin, 7 pin and 9 pin.
| Bulkhead Flange Mount Connector Dimensions |
Flange W 44.5 mm H 44.5 mm Socket L 43 mm |
|---|---|
| Flex Plug Cable Connector Dimensions |
L 69 mm Dia 38 mm |
| Sealing Cap Dimensions |
Plug cap L 16 mm x Dia 38 mm |
| Pin Option |
2 pin, 3 pin, 4 pin, 6 pin, 7 pin, 9 pin. |
| IP Rating |
IP68 |
| Max Cable Size |
3.5 mm – 9 mm |
| Material |
Polyurethane |
| Screw Sets |
A4 Stainless Steel |
| Approvals |
UL (E93288 and E337507), CSA (LR80968-30) and VDE (40023148) approvals |
| Packaging |
Re-cycled materials |
