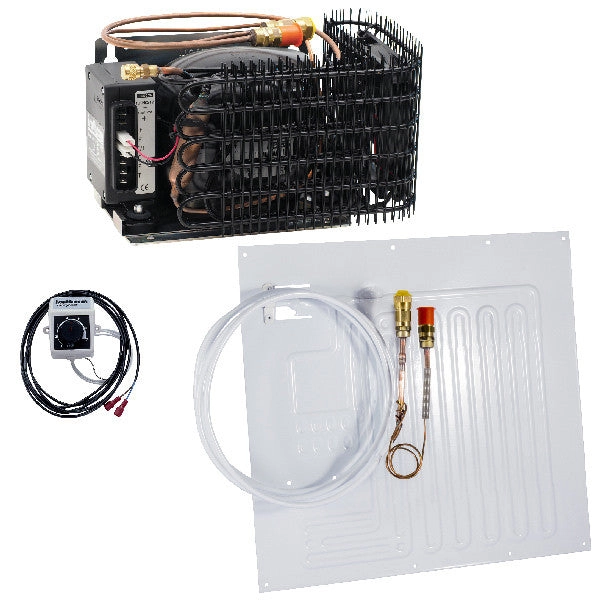

Isotherm cooling unit GE150, max 150L

Description

Cooling unit for those who want to create a built-in refrigerator in the boat

The chiller is air-cooled with air blown through the condenser by a fan. This is the traditional way of removing heat. The compressor can be mounted up to 2 metres from the evaporator using the flexible copper pipes provided. It is important that the compressor compartment is well ventilated, so that cold air enters from the bottom and hot air can be vented out from the top.

A simple and reliable thermostat that is very user-friendly. The thermostat turns the compressor on and off as needed.

Evaporator: Flat
· Evaporator dimensions: 386 x 361 mm
· Compressor: Secop (Danfoss) BD35F
· Voltage: Multi-volt, 12/24V
· Compressor dimensions (W x H x D): 280 x 160 x 175 mm
Thermostat: Mechanical

NOTE: Should be installed by certified refrigeration technicians.

Details:
Weight: 9.00 kg Voltage: 12/24 V Volume : Max 150 l
