Description

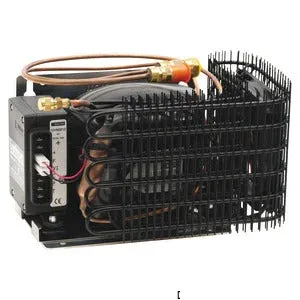

Kit including ventilated evaporator box and compressor whose combination reduces current draw by 25-30%. The ITC electronic systems makes the compressor work in Soft Start mode and manages the Fast Cooling and Over Cooling functions: when the boat engine is on, the ITC detects a current surplus and makes the compressor work at its maximum operation rate for faster cold storage; when the boat engine is off, the compressor works at minimum rate to ensure the minimum temperature setting.
Digital panel for temperature control.
Battery protection with selection of 3 different levels.
Air-cooled NIDEC (Secop) 12/24 V compressor.
Click-On fastening system for compressor.
| Max volume – Cooling unit | 100 | Max volume – Freezer | 35 | V | 12/24 | Compressor | BD35F |
| Temperature range | +2° -6° | mm – Evaporator | 300x210x60 | mm – Compressor | 280x160x175 |
View in catalogue
Related Products
| Item | Max volume – Cooling unit | Max volume – Freezer | V | Compressor | Temperature range | mm – Evaporator | mm – Compressor |
|---|---|---|---|---|---|---|---|
| 50.931.92 | 100 | 35 | 12/24 | BD35F | +2° -6° | 300x210x60 | 280x160x175 |
| 50.931.93 | 150 | 50 | 12/24 | BD50F | +2° -6° | 355x280x60 | 330x160x175 |
| 50.931.94 | 200 | 65 | 12/24 | BD50F | +2° -6° | 355x280x90 | 330x160x175 |
Related Files
- Instruction
- Istruzioni (ITA)
UOM: PZ
Height: 30 cm
Weight: 13.60 kg
Width: 29 cm
Cubage: 38,280 cm³
Length: 44 cm
