Description

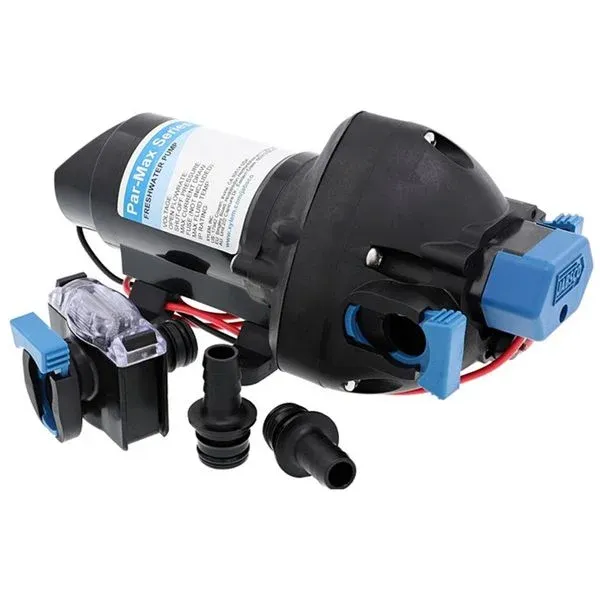

Jabsco 31395-2524 water pressure pump system is fitted with a built-in pulsation dampening by-pass to control unwanted cycling and noise. The Jabsco water pressure system also comes complete with quick connect fittings – for ease of pump installation – as well as an inline strainer.
This pump replaces the Jabsco 31395-0294 Par-Max 2.9 pressure pumps.
Jabsco Par-Max 3 Pump Features:
– Enclosed motor
– Integrated Pressure Switch
– Vibration & Noise reducing mounting
– Self‐priming
– Runs Dry without Damage
Jabsco Pump 31395-2524-3A Spare Parts:
Part ID | Spare Part | Part Number
1 | Port Clips | 30647‐1000
2 | Switch Kit | 18916‐1025
3 | Check Valve Assembly| 20407034
4 | Diaphragm/Drive Assembly | Not offered
5 | Baseplate/Mounting Feet | 20717001A
| Approvals | Complies with ISO8846 Marine (Ignition protection) |
| Cut In Pressure | 15 PSI / 1 Bar |
| Cut Out Pressure | 25 PSI / 1.7 Bar |
| Flow Rate | 11 LPM (2.9 US GPM) |
| Fuse | 5A |
| Height | 110mm (4.3″) |
| Length | 230mm (9″) |
| Series | Par Max 3 |
| Supplied With | Quick Connect Fittings & Inline Strainer |
| Voltage | 24V DC |
| Width | 152mm (6″) |
| Brand | Jabsco |
| Warranty | 3 Years |
| Hose Size | 13mm / 1/2″ |
| Model | 31395-2524-3A |
| Replaces | Jabsco 31395-0294 Par Max 2.9 |
| Self Primes up to | 1.8 Metres (5.9 Feet) |
| Inlet Outlet | Fittings for 13mm (1/2″) ID hose |
| Amps | 2.6A |
parmax 3 datasheet 31395 2524 3a
