Description

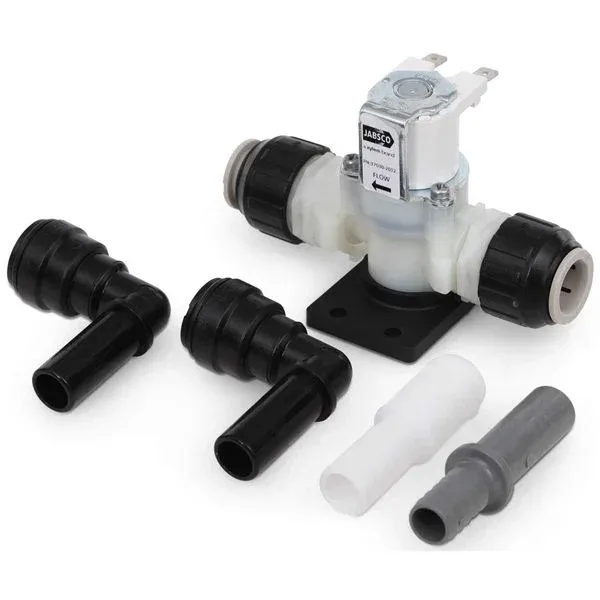

Jabsco 37038-2024 solenoid / anti-siphon valve in 24V is for use with Jabsco Quiet Flush fresh water toilets: 38045-3094 and 38045-4194. The inline, normally closed solenoid valve is supplied with 15mm (1/2″) JG Speed fit connections, 13mm (1/2″) hose tail inlet, 19mm (3/4″) hose tail outlet barb and a mounting bracket. It features a double check valve to protect against contamination of potable water, an internal inlet filter and is suitable to be mounted in any orientation, above or below toilet.
| Application | Jabsco Fresh Water Flush Quiet Flush Toilets |
| Height | Including Bracket: 64mm (2-1/2″) |
| Length | Including Bracket: 71mm (2.8″) |
| Voltage | 24V DC |
| Width | 114mm (4-1/2″) |
| Brand | Jabsco |
| Toilet Flush Water | Fresh Water |
| Valve Design | Siphon Break Valve |
| Dimensions | Distance between mounting hole centres: 19mm x 54mm (3/4″ x 2.1″) |
| Inlet Outlet Port Size | 15mm (1/2″) JG Speed fit, 13mm (1/2″) hose inlet, 19mm (3/4″) hose outlet |
| Model | 37038-2024 |
| Replaces | Jabsco 37038-1024 |
