Description

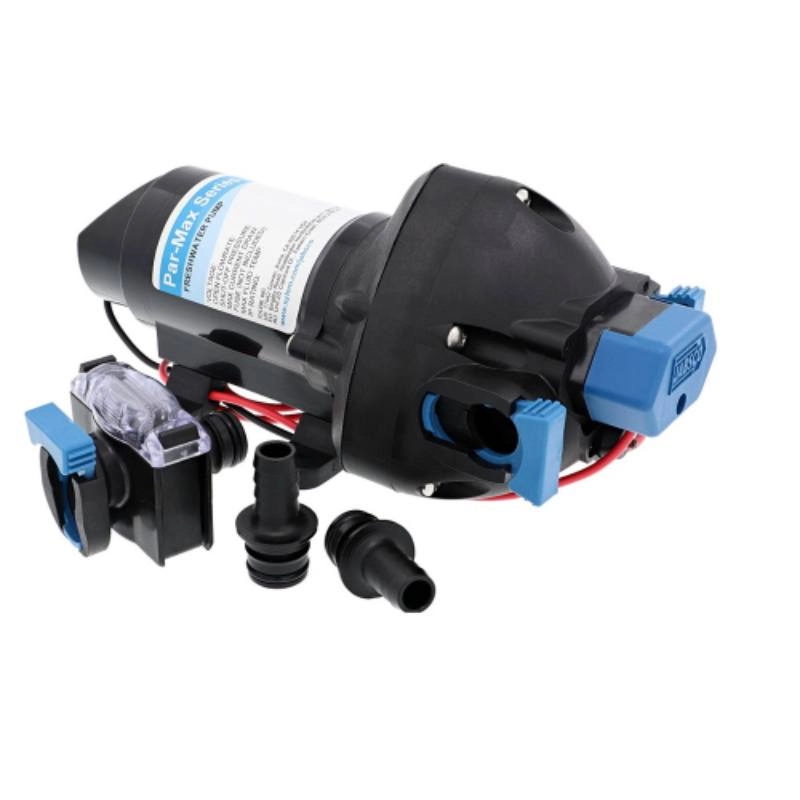

Jabsco Par Max 3 24v Pressure-Controlled Pump

• Connections: for 13mm (½”) bore hose.
• Dimensions: 230mm long, 152mm wide, 110mm high.
• Fuse Size: 10(amp).
• Maximum Current: 4.4(amps).
• Output: 11 litres/minute (2.4 gallons/minute) open flow.
• Pressure Switch: Cuts in at 1.0bar (15psi) – cuts out at 1.7bar (25psi).
• Efficient, high-flow, self-priming pump serving 2 or more outlets.
• Multi-diaphragm design self primes to 1.8m vertical lift, can run dry without damage.
• Supplied with snap-in ports for hose 1/2″ (13mm) and Strainer.
• Quiet running.
• Motor protected by automatic thermal overload cut-out.
• Includes bypass feature to provide smooth, quiet flow.
• Packaged Dimensions: L:17.00 x H:11.00 x W:34.00cm.
• Actual Weight: 1.80 Kg (Approx. 2.30 Kg packed).
