Description

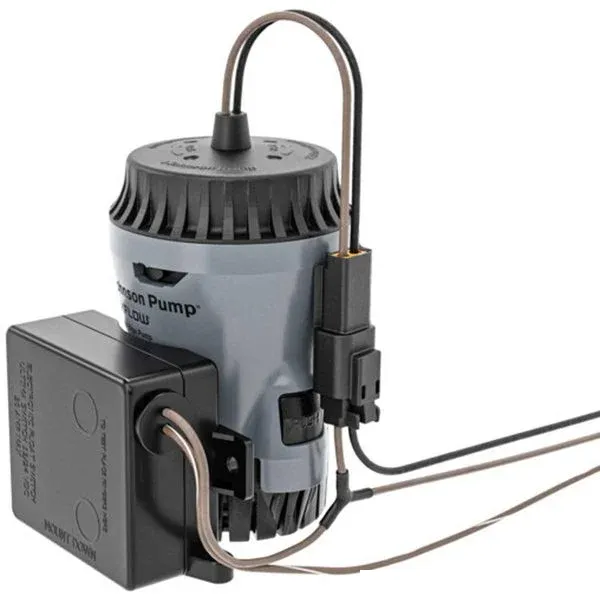

Johnson Aqua Void automatic cartridge bilge pump 500 GPH 12V DC features an industry-first quick-change motor connection and reinforced click-in basket, to simplify cleaning and installation – convenient and efficient. The Aqua Void Ultima Combo bilge pump enhanced motor ensures reliability and performance in any condition for a worry-free boating experience.
Combined with the non-clogging electronic switch Ultima Switch for automatic operation. The electronic automatic switch Ultima Switch uses the patented Mirus field effect detector cells producing micro-electrical fields that detect disruptions caused by level of water present in the bilge and automatically activates and deactivates the pump.
Johnson’s ground-breaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.
The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.
Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.
Johnson Pump Marine is renowned for industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.
Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don’t miss this opportunity to enhance your boating experience. Get the Aqua Void today!
Please Note: This Aqua Void Ultima Combo bilge pump is the OEM bulk packaged version; Dura-Ports and check valve must be purchased separately.
– Limited 3-Year Warranty
– 500 GPH Capacity
– Pre-configured with an electronic Ultima Switch for automatic operation
– Heightened Efficiency with an Increased Flow Rate – High Flow Impeller Design
– Quick-Change Motor Connection Enjoy Quick and Hassle-Free Cartridge Motor Changes or Capacity Upgrades. Industry First and Only Cartridge Motor Pump with included harness connection requiring no cutting and splicing of wires
– Water-cooled motor for long service intervals
– Compact, all-in-one motor/impeller unit with stainless steel (316) shaft
– No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
– Meets the international standard, ISO 8849 marine
– Moulded T-Slot – Easy Installation with Switches
– Cartridge Pump combined with the Ultima Switch for automatic operation
| Flow Rate | 2280 LPH (600 US GPH) |
| Flow Rate 1 Metre Head | 1560 LPH (410 US GPH) |
| Material | ABS Pump body, Nitrile Rubber Shaft seal & 316 Stainless Steel Shaft |
| Automatic Bilge Pumps | Yes |
| Flow Rate 2 Metre Head | 960 LPH (250 US GPH) |
| Maximum Recommended Head | 3 Metres (9.9 feet) |
| Wire Size | 16 Gauge (1.3mm2) |
| Brand | Johnson |
| Series | Aqua Void Automatic Ultima Combo |
| Voltage | 12V DC |
| Amps | 2.7A |
| Fuse | 3.5A |
| Approvals | ISO 8849 Marine |
| Height | 120mm (4.69″) |
| Width | 75mm (2.95″) |
| Depth | 168mm (6.63″) |
| Weight | 0.45kg (17.1 oz) |
johnson aqua void bilge pump manual
Manufacturer Part Number: 10-13635-02
