Description

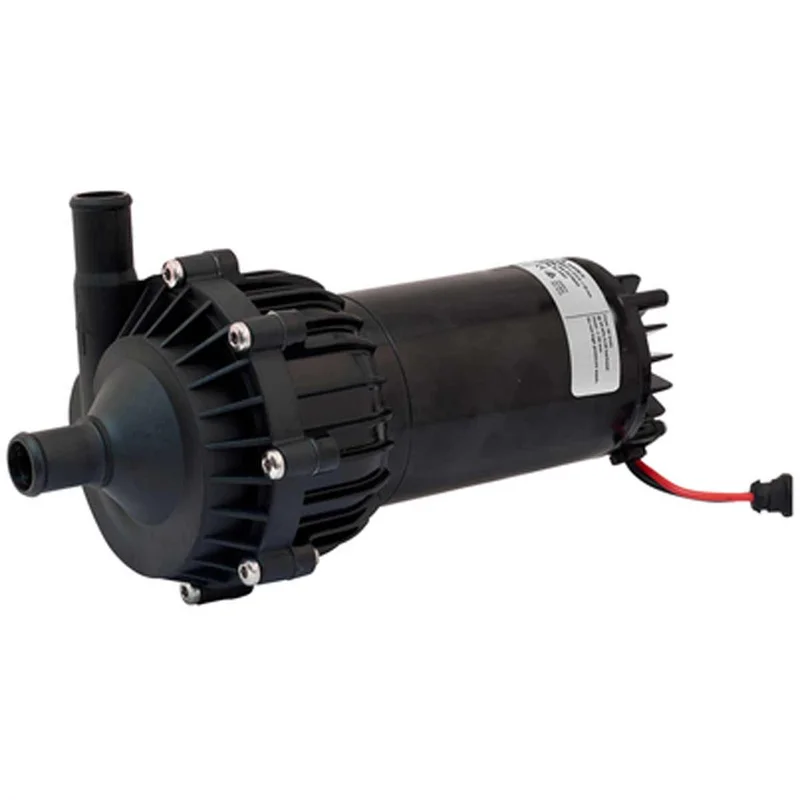

The Johnson CM-series is a line of compact magnetic driven centrifugal pumps, which combine high flow rates with very low electric current consumption. This Johnson 10-24750-10 pump is designed to circulate water or a water/antifreeze mixture in the heating systems of boats, buses and trains.
Pump Body: PPA, glass fibre reinforced
Impeller: PA12
Shaft: stainless steel
Motor: 24V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor designed for continuous operation
Temperature: -40°C to +100°C (-40°F to +212°F)
System Pressure: 2.5 Bar maximum
Port size: 20mm (3/4″)
Dry Running: 30 minutes
Input Power: 125W maximum
Mounting: separate universal bracket for flat surfaces
| Flow Rate | 65 LPM (17.2 GPM) at 0.1 Bar, 50 LPM (13.2 GPM) at 0.25 Bar |
| Hose Tail Size | 20mm / 3/4″ |
| Continuously Rated | Yes |
| Operating Pressure | 2.5 Bar maximum |
| Brand | Johnson |
| Series | CM90 |
| Model | 10-24750-10 |
| Voltage | 24V DC (27.2V Maximum) |
| Wattage | 125W maximum |
| Height | 140.5mm (5.5″) |
| Width | 120mm (4.7″) |
| Length | 255mm (10″) |
| Weight | 3kg (6.6 lbs) |
| Temperature Range | -40°C to +100°C (-40°F to +212°F) |
Manufacturer Part Number: 10-24750-10
