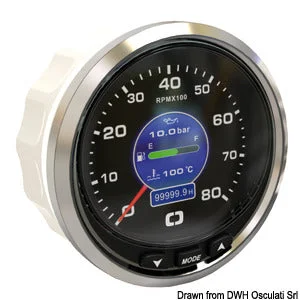

LCD multifunction instrument

Description

Compatible with NMEA2000 / J1939 / analog protocols.
To be used with any outboard / inboard engine except Mercury with SMARTCRAFT protocol.
Functions:
– Speedometer via GPS signal ((Knots, km/h, MPH).
– Revolution counter w/full scale freely selectable from 3000 to 8000 RPM.
– Hourmeter.
– Built-in GPS antenna.
– fuel level + alarm 10%. Freely selectable 0-190 / 240-33 ohm.
– oil pressure + alarm at 0.7 bar (favourite scale bar/psi freely selectable).
– water temperature + alarm 95° (Celsius / Fahrenheit scale) freely selectable.

Backlit dial (clearly legible even when exposed to sunlight), adjustable lighting. Red and yellow backlit dial. Power supply 9/32 V. Dial resolution: 432×432 pixel.
Supplied with: 1m 5-pole NMEA cable with standard end connector, 1m 6-pole-analog cable.

View in catalogue

Related Products

Related Files

• Instruction (ENG)
• Istruzioni (ITA)

UOM: PZ
Height: 14 cm
Weight: 0.76 kg
Width: 12 cm
Cubage: 2,352 cm³
Length: 14 cm
