Description

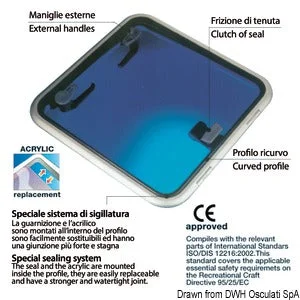

The profile sticks out as little as 25 mm from the deck. CE-approved for AREA 2. External handles allow the hatch to be opened from on the deck, friction levers to hold the lid open in any position up to 95°. Anodized aluminium frame for corrosion resistance and curved upper frame profile for strength. Large quantities available in white or mirror-polished aluminium finish.
| Version with | stay | Size | 60 | Lower frame flange mm | 15 | external mm – X | 577 |
| external mm – Y | 577 | external mm – Z | 25 | external mm – R | 72,5 | cut-out dimensions (depending on trimming ring) mm – X1 | 507 |
| cutcut-out dimensions (depending on trimming ring)mm – Y1 | 507 | cut cut-out dimensions (depending on trimming ring)mm – R1 | 42,5 | 6,4 | Acrylic thickness mm | 10 | |
| Finishing counteflange + mosquito net | 19.413.60 |
View in catalogue
Related Products
| Item | Version with | Size | Lower frame flange mm | external mm – X | external mm – Y | external mm – Z | external mm – R | cut-out dimensions (depending on trimming ring) mm – X1 | cutcut-out dimensions (depending on trimming ring)mm – Y1 | cut cut-out dimensions (depending on trimming ring)mm – R1 | Acrylic thickness mm | Finishing counteflange + mosquito net | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 19.410.03 | self-supporting lid | 03 | 15 | 246 | 301 | 25 | 72,5 | 176 | 231 | 42,5 | 1,6 | 8 | – |
| 19.410.10 | self-supporting lid | 10 | 15 | 330 | 330 | 25 | 72,5 | 260 | 260 | 42,5 | 2,2 | 8 | – |
| 19.410.20 | self-supporting lid | 20 | 15 | 272 | 417 | 25 | 72,5 | 202 | 347 | 42,5 | 2,3 | 8 | 19.413.20 |
| 19.410.30 | self-supporting lid | 30 | 15 | 397 | 527 | 25 | 72,5 | 327 | 457 | 42,5 | 3,9 | 8 | 19.413.30 |
| 19.410.40 | self-supporting lid | 40 | 15 | 491 | 491 | 25 | 72,5 | 421 | 421 | 42,5 | 4,6 | 8 | 19.413.40 |
