Description

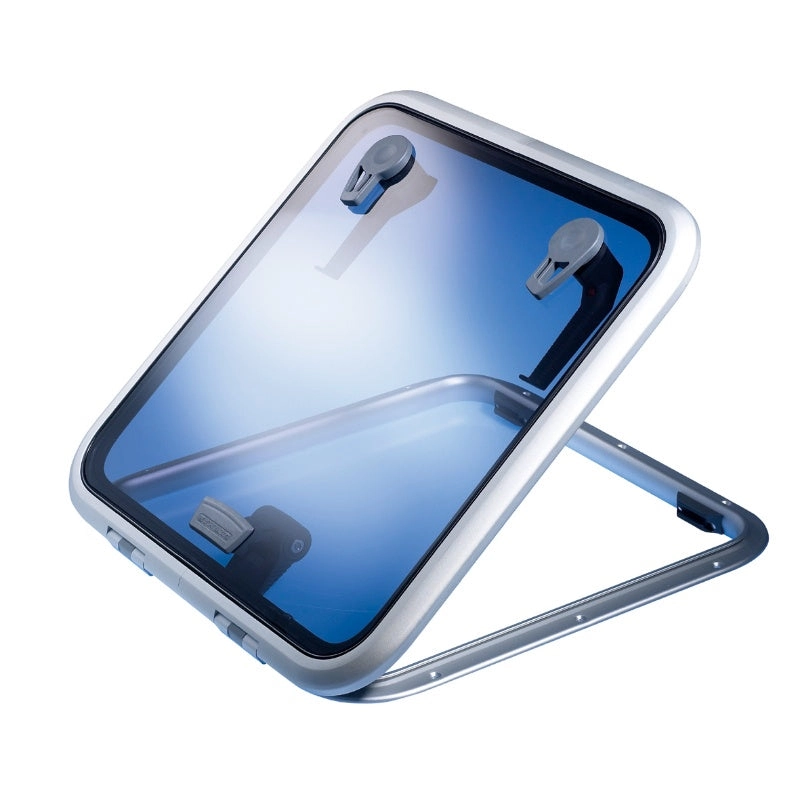

Lewmar Low Profile Self Supporting Hatch

The Low Profile Hatch has soft styling and sleek looks, ideal for use on a powerboat. Smaller ventilation hatches are suitable for any deck location on sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts.

Features

• Outside handles allow the hatch to be opened from on deck if it is not locked (Sizes 00, 03,10, 20 & 41 have no outside handle and can only be opened from the inside).
• Low profile hatches open up to 180° (round hatches open to 170°).
• Friction levers hold the lid open in any position up to 95°.
• Anodised aluminium frame for corrosion resistance.
• Curved upper frame profile for strength as well as modern styling.
• Available in Round and D-Hatch configuration.
• Full range of spare parts available.

Specifications

All sizes

• Support System: Self Supporting
• Acrylic Colour: Smoke Grey
• Lower Frame: 15mm
• Acrylic Window Thickness: 8mm
• Height Z: 25mm
• Radii R: 72.5mm
• Cut-Out Radii R1: 42.5mm

Size: 0 | 39900030

• Hatch Weight: 1.6kg
• Acrylic Window Thickness: 8mm
• Length X: 281mm
• Width Y: 281mm
• Cut-Out Length X1: 211mm
• Cut-Out Width Y1: 211mm

Size 10 | 39910030

• Hatch Weight: 2.2kg
• Acrylic Window Thickness: 8mm
• Length X: 330mm
• Width Y: 330mm
• Cut-Out Length X1: 260mm
• Cut-Out Width Y1: 260mm

Size 44 | 39944030

• Hatch Weight: 4.8kg
• Acrylic Window Thickness: 8mm
• Length X: 512mm
• Width Y: 512mm
• Cut-Out Length X1: 442mm
• Cut-Out Width Y1: 442mm

Size 60 | 39960030

• Hatch Weight: 6.4kg
• Acrylic Window Thickness: 10mm
• Length X: 577mm
• Width Y: 577mm
• Cut-Out Length X1: 507mm
• Cut-Out Width Y1: 507mm

Mounting Instructions

• Fit to a flat surface with a maximum tolerance of +/- 1mm
• Fastening size at hinge section use (M6 / 1/4″)
• Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA
