Description

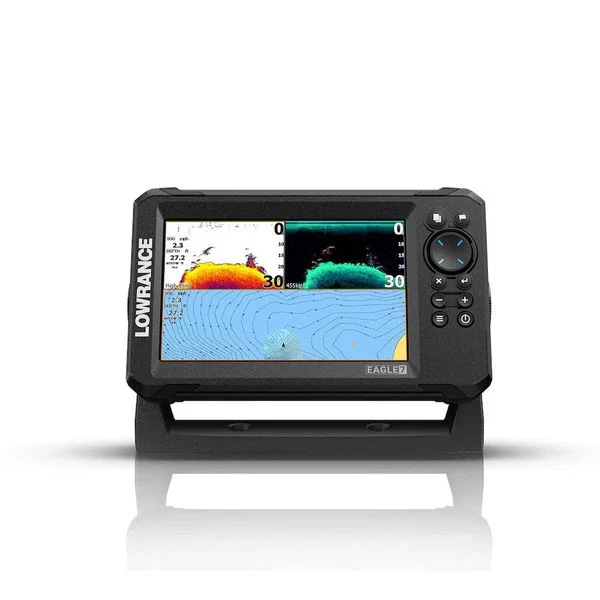

The Lowrance Eagle 7 with 83/200 HDI is a user-friendly fish finder designed to enhance the fishing experience with advanced sonar technologies and easy installation.
This 7-inch model benefits from the following features:
– User-Friendly Design: Designed to make fishing simple and enjoyable, allowing users to focus on fishing rather than setup.
– Autotuning Sonar: Automatically adjusts sonar settings for optimal performance, ensuring a quick and efficient setup.
– Lowrance CHIRP Sonar: Provides high-resolution views of individual fish targets, improving target separation and clarity.
– DownScan Imaging™: Offers photo-like images of underwater structures directly beneath the boat, helping to identify fish-holding areas.
– FishReveal™ Technology: Combines CHIRP sonar and DownScan Imaging™ for better fish identification and target separation.
– IPS Screen: Higher resolution and improved visibility from all angles, even in bright sunlight and with polarised sunglasses (compared to older models).
– Worldwide Base map Chart: Comes pre-loaded, providing essential navigation information .
– Option to upgrade to CMAP® DISCOVER™: Offers detailed and accurate charts for inland and coastal areas, enhancing navigation and fishing efficiency.
– Transducer: 83/200 kHz HDI Transducer suitable for various depths and provides versatile imaging capabilities for different fishing environments.
Key Features
83/200 HDI MED/HIGH Transducer with Autotuning sonar
Worldwide Base map
IPS screen, viewable from all angles, even in polarised glasses
Reliable twist-lock connector system for easy installation in any boat or kayak
SD card slot for software updates, Genesis Live recording and charting add-ons
See fish hiding in cover with FishReveal™ mode
Increase contrast and viewability with all-new Imaging colour palettes
| Resolution | 800 x 480 |
| Selection Guide | HDI Transducer |
| Brand | Lowrance |
| Screen Size | 7″ |
| Series | Eagle |
| Model | Eagle 7 |
| Voltage | 12V DC (10.8-17VDC) |
| Fuse | Recommended Fuse Rating: 3A |
| Height | 139.8 mm (5.5″) |
| Width | 225.9 mm (8.89″) |
| Depth | 88.5 (3.48) |
| Weight | 0.67 kg (1.48 lb) |
| Consumption | Max: 550 mA @ 12 V DC with backlight on full / Min: 250 mA @ 12 V DC with backlight off / Typical: 550 mA @ 12 V DC with backlight on full |
| Operating Temperature | 5°F to 131°F (-15°C to 55°C ) |
| Angle | Viewing: 80° top/bottom, 80° left/right |
| Warranty | 1 Year + 4 additional years of upgrade options (totaling 5 years) |
| Mounting | Gimbal bracket or dash mount |
Lowrance Eagle 7 and 9 Installation Guide and Mounting TemplateLowrance Eagle 7 and 9 Mounting TemplateLowrance Eagle 7 EU Declaration of ConformityLowrance Eagle Quick Start GuideLowrance Eagle Series Operator Manual
Manufacturer Part Number: 000-16308-001
