Description

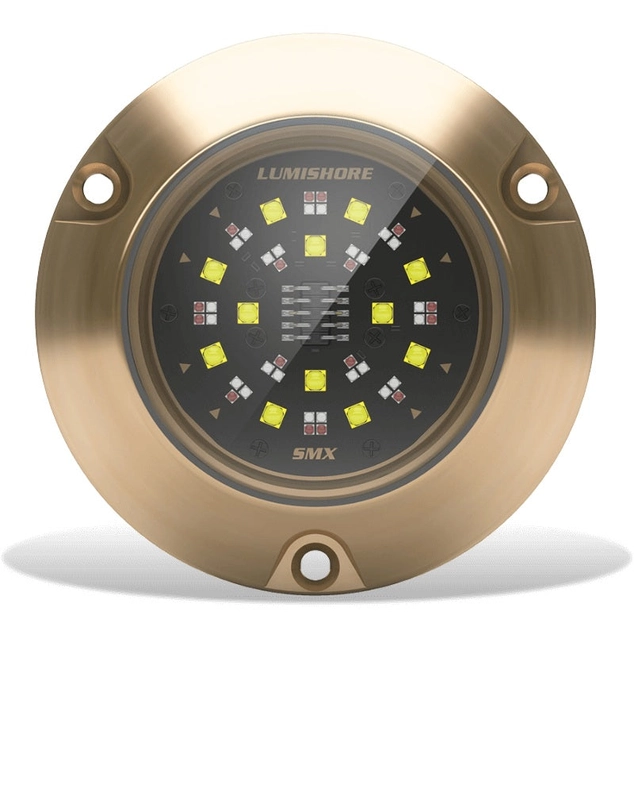

Lumishore EOS SMX154 Surface Mount RGBW LED
Model: SMX154 / 010-04508-00
The SMX154 offers boat owners unprecedented full color control of their underwater lighting system, delivering 7,000 verified fixture lumens and a wide 90° beam angle.
Control your SMX154 underwater lights directly from your compatible MFD and/or Lumishore Display.
Lumishore’s unique light discovery and light auto-install function simplifies the system setup and reduces installation time.
Suitable for stepped hulls, transoms, and side mounting.
Specifications
| AVAILABLE LED COLORS | FULL EOS COLOR CHANGE (RGBW) |
| LUMENS | 15,750 |
| VERIFIED FIXTURE LUMENS (WHITE) | 7,000 |
| NUMBER AND TYPE OF LEDS | White—1210W / Green—123W / Blue—123W / Red—163W |
| LED POWER – HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 90° |
| DRIVER | Multi-Channel Internal Driver |
| SUPPLY VOLTAGE | 12/24 V DC |
| MAX CURRENT DRAW | 4.0A/2.0A |
| HOUSING TYPE | MARINE GRADE BRONZE / GLASS LENS |
| USER CONTROL OPTIONS | From your MFD and/or optional Lumishore Display |
| Warranty | 3 Years |
What’s in the Box:
- One (1) EOS SMX154 Light with Built-in Driver
WARNING: Cancer and Reproductive Harm –
Brand: Lumishore
UPC: 847772003910
Model Number: 010-04508-00
Weight: 1.070000
