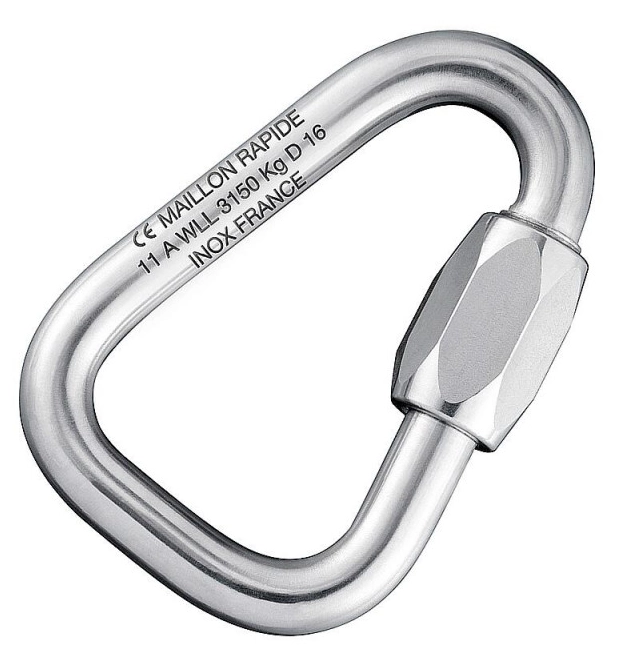

Maillon Rapide Delta Quick Link Pattern – Stainless Steel

Description

Load stamped stainless steel delta quick link by Maillon Rapide. The maximum permitted working load is displayed on each item by the working load limit (WLL) in Kg.

All dimensions are in mm, weights in Kgs

DiaHT LT L1 OWork/L B/Load
pbmr-dl03 3 30 27 21 4 110 550
pbmr-dl04 4 40 35.5 27.5 5.5200 1000
pbmr-dl05 5 48 40 30 6.5325 1625
pbmr-dl06 6 56 47 35 7.5450 2250
pbmr-dl08 8 73 56 40 10 770 3850
pbmr-dl10 1087 66 46 12 1250 6250
