Description
FEATURES
For UPx Series Gear Pumps:
Pump Body: Nickel Plated Brass
Port Size: 3/8″ BSP (British) Female Threaded Ports AND 3/8″ NPT Male Threaded Ports
or
1/2″ BSP (British) Female Threaded Ports AND 1/2″ NPT Male Threaded Ports Depending on Model
Flow: Up To 2.6 GPM, 4.0 GPM, 6.9 GPM or 9.5 GPM Depending on Model
Pressure: Up To 21.8 PSI or 29 PSI Depending on Model
Gears: Bronze
Shaft Seal: Lip Type
Shaft: Stainless Steel
Motor: 12 Volt or 24 Volt DC Models. Heavy Duty Ball Bearing Design, Motors Are ISO 8849 Marine (Bilge Standard), IP Protection 67.
APPLICATIONS / CHARACTERISTICS
Primarily For Diesel Transfer And Refueling, Light Weight Oils, Fresh Water and Glycol Antifreeze.
Self-Priming.
Some Models Have Integrated On-Off Switches or Forward-Off-Reverse Switches As Noted.

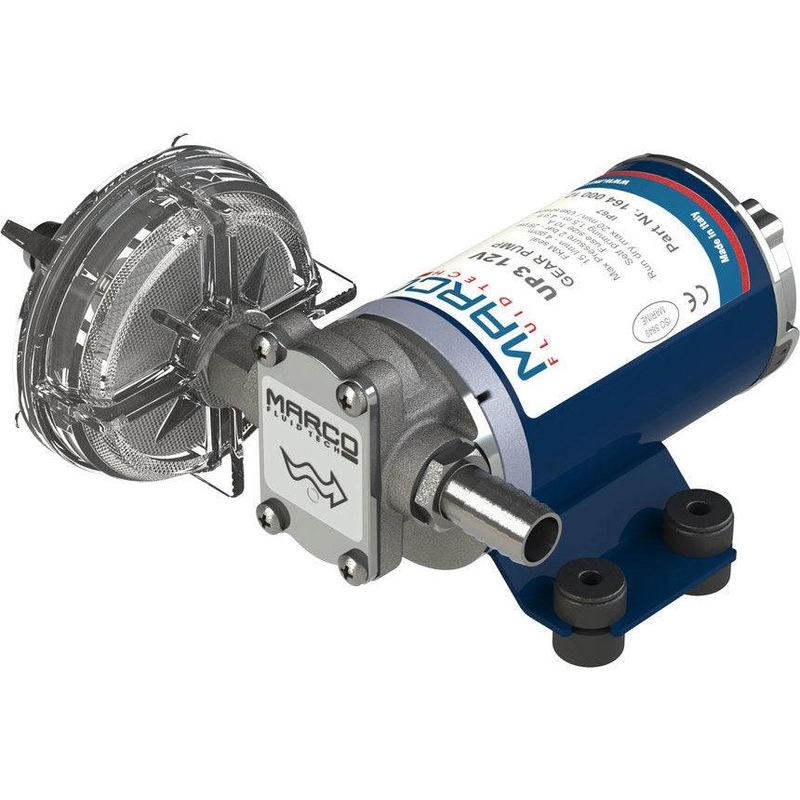

Marco- Model UP3, Gear Pump, Nickel Plated Brass Body, Bronze Gears, Stainless Steel Shaft, 3/8″ BSP (British) Female Threaded Ports and 3/8″ NPT Male Threaded Ports, 12V, Up To 4.0GPM, Up To 29PSI, Self-Priming to 4.9 Feet, 6 Amp Draw, 10 Amp Fuse Required, 120 Watts.
For Diesel Transfer And Refueling, Light Weight Oils, Fresh Water and Glycol Antifreeze.
